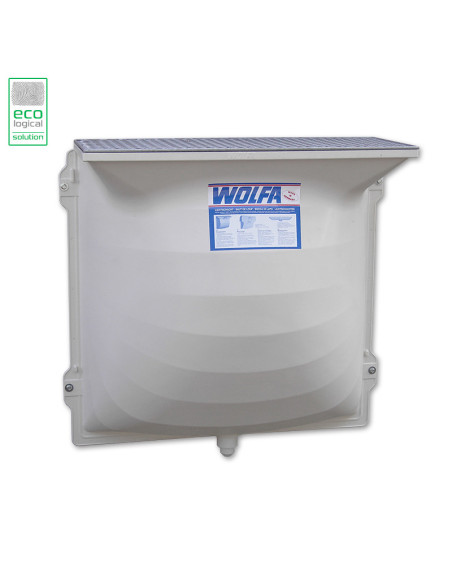

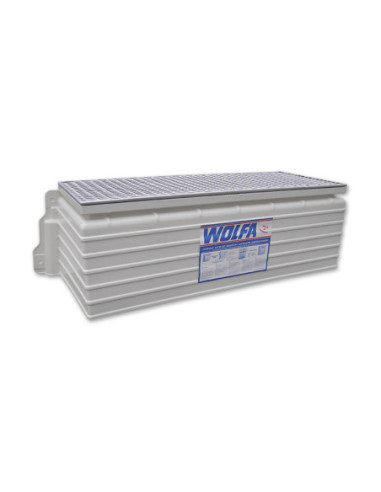

WOLFA light well with a grid grating 30/30

Light wells provide an excellent solution for lighting basements. Light wells can visually enlarge the available space and create conditions for new opportunities during basement adaptation.

With its patented design WOLFA light wells provide protection for the upper edge of the body that can be damaged in similar systems offered by the competition. It is now possible to connect them with the surrounding surface achieving a unique aesthetic visual effect. The specific design guarantees that no dirt accumulates between the grating and the body edge.

FEATURES OF WOLFA LIGHT WELLS

• Made of fibreglass-reinforced polyester (GFK) in the SMC process.
• SMC compound is a duroplastic composite material, unlike to polypropylene or PVC, which are thermoplastics.
• The body interior is smooth and clear, so it reflects maximum light and directs it into the basement interiors, e.g. garages, pantries or storerooms.

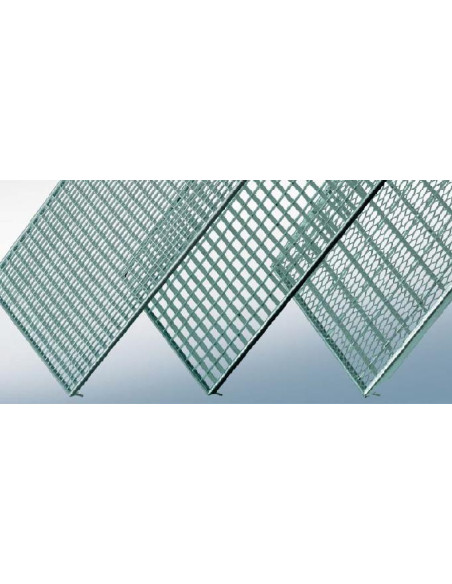

• Gratings are made of galvanised steel. Their selection is based on load.
• Mesh grating – max. load 470 kg/m2, grid grating 30/30 – max. load 600 kg/m2
• Grid grating 30/10 – reinforced 7.2 kN
• Body with a bottom hole.
• Possible connection to the sewer system with a siphon or screen drain (depends on light well type).
• Light well height adjustment with built-in telescopic adjustment range of 7–31 cm.

ADVANTAGES OF WOLFA LIGHT WELLS

• High stability.
• Light and easy installation.
• Resistant to mechanical damage, weather conditions and corrosive chemicals.
• Exceptional durability, no signs of wear.
• Permanent solution that requires no maintenance.
