WOLFA light well with a grid grating 30/10

  • Special offer
  • New
  • Recommended
Rating (4/5)

Light wells provide an excellent solution for lighting basements. Light wells can visually enlarge the available space and create conditions for new opportunities during basement adaptation.

Producer: Wolfa

Print an offer
Add to wish list
If you haven't decided yet to buy this product, add it to your personal wish list which you can manage at any time

Light wells provide an excellent solution for lighting basements. Light wells can visually enlarge the available space and create conditions for new opportunities during basement adaptation.

With its patented design WOLFA light wells provide protection for the upper edge of the body that can be damaged in similar systems offered by the competition. It is now possible to connect them with the surrounding surface achieving a unique aesthetic visual effect. The specific design guarantees that no dirt accumulates between the grating and the body edge.


  • Made of fibreglass-reinforced polyester (GFK) in the SMC process.
  • SMC compound is a duroplastic composite material, unlike to polypropylene or PVC, which are thermoplastics.
  • The body interior is smooth and clear, so it reflects maximum light and directs it into the basement interiors, e.g. garages, pantries or storerooms.

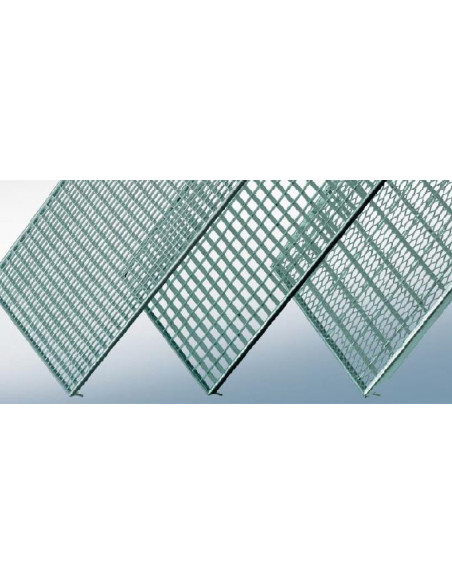

  • Gratings are made of galvanised steel. Their selection is based on load.
  • Mesh grating – max. load 470 kg/m2, grid grating 30/30 – max. load 600 kg/m2
  • Grid grating 30/10 – reinforced 7.2 kN
  • Body with a bottom hole.
  • Possible connection to the sewer system with a siphon or screen drain (depends on light well type).
  • Light well height adjustment with built-in telescopic adjustment range of 7–31 cm.


  • High stability.
  • Light and easy installation.
  • Resistant to mechanical damage, weather conditions and corrosive chemicals.
  • Exceptional durability, no signs of wear.
  • Permanent solution that requires no maintenance.

 Click here for more technical information:

Light wells are available in varied sizes, width from 81 to 200 cm and height from 66 to 120.

The kit includes:

  • shaft
  • galvanized grating
  • installation kit
  • drain port (extra charge)

Gratings are equipped in anti-burglary protection.


  • mesh grating – acceptable load  4,7 kN
  • grid grating 30/30 – acceptable load 6,2 kN
  • grid grating 30/10 – acceptable load 7,2 kN

Up to 3 adjustment units can be used with the light well. You need to use a reinforced option of a light well and adjustment units together with matching reinforced frames. The height is regulated on the bottom adjustment unit.


  • suits perfectly low-located basements
  • slides over the shaft in the range 7 - 33 cm
  • reinforced frame needs to be used with an adjustment unit
  • height regulation to the ground level

Shipping rates may differ when additional duties or other non-routine customs charges apply in the country of delivery.

Technical data

Dimensions 81/66/43 - 200/120/60 cm
Measure unit Set
Height regulation No
Manufacturer Wolfa
Type of grating Grid grating 30/10


Adjustment unit Yes (extra charge)
Assembly kit Yes
Reinforcing frame Yes (extra charge)
Sewer connection Yes (extra charge)


Warranty time 24 months

1 person commented the product

Added The basement company limited on 2016-04-19 12:06:14
Product quality

Product price

Order service

Realization time

Product is perfect. Couldn't want anything better. Speeds up creation of light well and end result is just right. Would prefer English speaking contact in sales, but emails do work, but it draws out the process. Delivery time is slower than expected but this may improve as we learn how to deal with the supplier

165.55 EUR/set 188.56 EUR/set
  • Product is available
  • Dispatch from: 39.73 EUR
  • Realization 4 - 21 working days
