MULTINORM basement light well 3in1 with a mesh grating

  • Special offer
  • New
  • Recommended
0
Rating (0/5)

Light wells provide an excellent solution for lighting basements. Light wells can visually enlarge the available space and create conditions for new opportunities during basement adaptation.

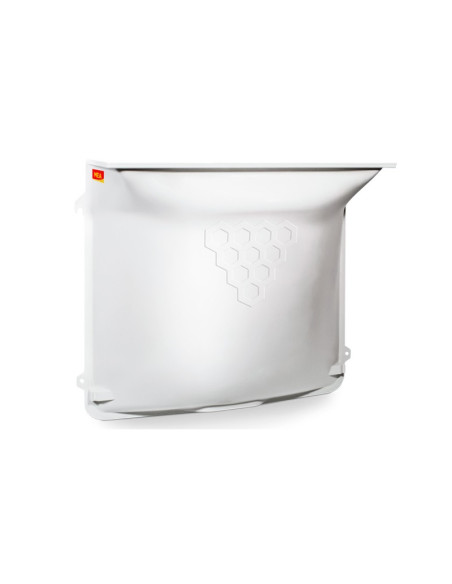

A new generation of 3-in-1 Multinorm light wells - universal, reinforced and waterproof. Light wells available in two depths: 40 cm and 60 cm. Thanks to the new "honeycomb" design, the material is 20% more resistant to compression than the earlier model.

Producer: Mea

Print an offer
Add to wish list
If you haven't decided yet to buy this product, add it to your personal wish list which you can manage at any time

Light wells provide an excellent solution for lighting basements. Light wells can visually enlarge the available space and create conditions for new opportunities during basement adaptation.

A new generation of 3-in-1 Multinorm light wells - universal, reinforced and waterproof. Light wells available in two depths: 40 cm and 60 cm. Thanks to the new "honeycomb" design, the material is 20% more resistant to compression than the earlier model.

By using additional cladding it is possible to increase the height of the body, which in turn makes it easier to adjust the size of the light well to individual customer needs. The light well is easy and quick to install. This ensures the light well fits perfectly into the terrain, while avoiding unnecessary drilling during installation. Another advantage is the exceptionally aesthetic visual effect.

FEATURES OF MULTINORM LIGHT WELLS

  • Body made of high-quality composite glass iron.
  • the "honeycomb" design increases the compressive strength by 20%
  • For pedestrian traffic.
  • Light well depth: 40 cm, 60 cm
  • Smooth body surface provides maximum lighting for basement space, e.g. garages, storerooms, pantries.
  • A drain hole at the bottom.

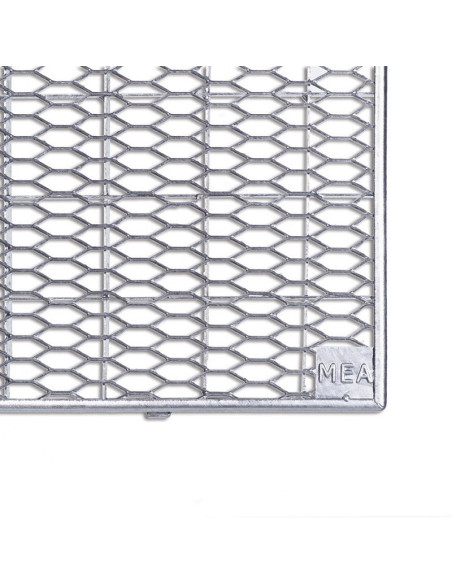

  • Grating made of galvanised steel: mesh grating, grid 30/30, grid 30/10, PKW grating (for passenger vehicle traffic).
  • Variable light well height with built-in telescopic adjustment range of 8–33 cm.
  • Bacis installation kit included as standard (for walls without thermal insulation)
  • Possibility of purchasing a mounting kit for walls with thermal insulation or a waterproof assembly kit (AQUA) - for an extra charge
  • When a reinforced body and PKW grating is used, the light well is suitable for passenger vehicle traffic.
  • Drain connection (for extra charge).
  • Light well material is resistant to deformation (100% frost-resistant).
  • Extra protection of grating is possible (for extra charge).

ADVANTAGES OF MULTINORM LIGHT WELLS

  • Provides ideal lighting and air to a basement.
  • Stable, light and easy installation.
  • Resistant to deformation and mechanical damage, weather conditions and corrosive chemicals.
  • Exceptional durability, no signs of wear.
  • Permanent solution that requires no maintenance and is resistant to chemical compounds and weather conditions (100% frost-resistant).
  • Easy to keep clean, ideal for installation on hillsides and in case of heavy and compacted soil (e.g. clays).
  • Reinforced construction
  • Waterproof using the appropriate assembly kit (AQUA) - for an extra charge


Light wells are available in varied sizes, width from 80 to 150 cm (model XL up to 200 cm), height from 60 to 130 cm (model XL up to 150 cm), and depth from 40 to 60 cm (model XL 70 cm).

The kit includes:

  • 1-part shaft
  • galvanized mesh grating
  • standard installation kit

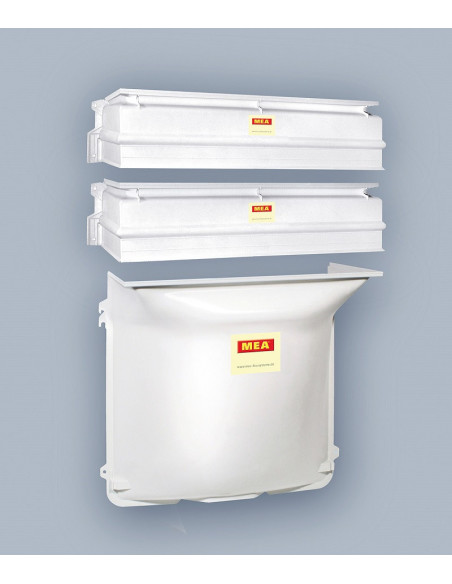

MULTINORM light wells can be used with adjustment units – regulated in the range from 8 to 33 cm. You need to remember about a reinforced frame when fixing an adjustment unit.

The universal assembly kit needs to be used to fix each adjustment unit. When fixing an adjustment unit to the light wells, an additional construction stability is provided by a reinforced frame. When the light well is fixed in the place where ground conditions are unfriendly, on the slope  or when there are more than 1 adjustment units, it is necessary to use reinforced frames.

  • W - width: 80, 100, 125 cm
  • H - height: 35 cm
  • D - depth: 40, 60  cm

Maximum amount of adjustment units:

  • for standard light wells with width up to 125 cm - 3 adjustment units

Shipping rates may differ when additional duties or other non-routine customs charges apply in the country of delivery.

Technical data

Dimensions 80x60x40 - 150x120x60
Measure unit Set
Manufacturer MEA
Type of grating Galvanized mesh grating

Accessories

Adjustment unit Yes (extra charge)
Assembly kit Yes
Ladder Yes (extra charge)
Reinforcing frame Yes (extra charge)
Sewer connection Yes (extra charge)

Warranty

Warranty time 24 months

Files

doswietlacze-multinorm---instrukja-montazu-pdf Download a file
mea-multinorm-3w1-broszura-pdf Download a file
kot-krajowa-deklaracji-wlasciwosci-uzytkowych-doswietlaczy-pdf Download a file
instrukcja-konserwacji-doswietlaczy-z-kompozytu-poliestrowo-szklanego-pdf Download a file
82.39 GBP/set 132.89 GBP/set
  • Product is available
  • Dispatch from: 33.98 GBP
  • Realization 4 - 21 working days
