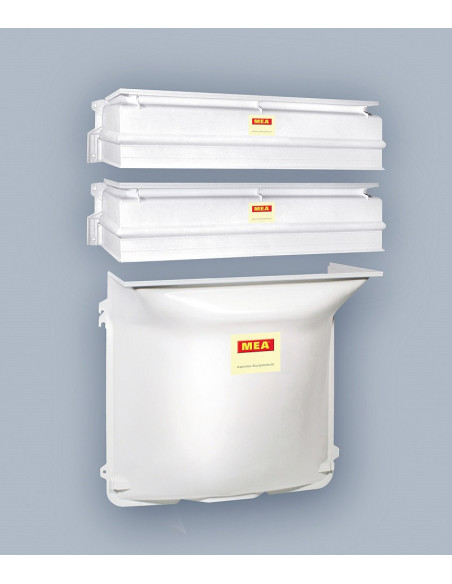

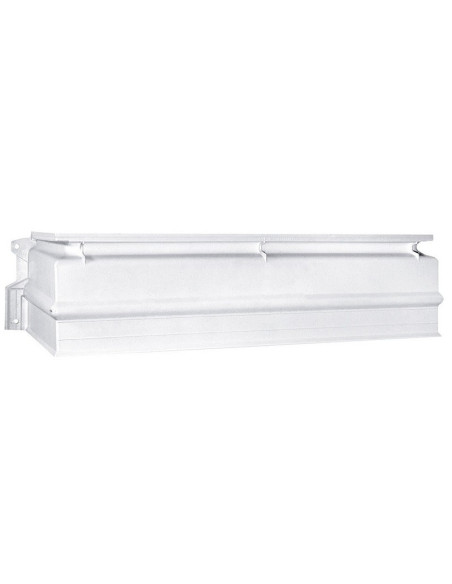

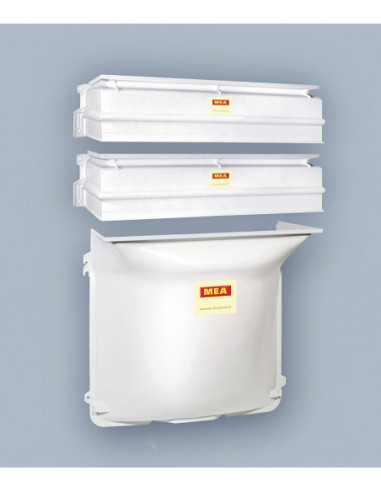

Adjustment unit for MEA MULTINORM light well

Light well adjustment unit is an ideal solution for lower-lying basements. The design of the adjustment unit has been additionally reinforced. Fitting and installation can be done with stepless adjustment by moving the adjustment unit over the light well body and screwing it to the wall at the desired height. The use of reinforced frames is recommended when installing more than one adjustment unit.

Maximum up to 3 adjustment units can be mounted one on the other (with width of 150 cm only one adjustment unit). When there are mounted more than one adjustment unit with width of 100 or 125 cm it is necessary to use a reinforced shaft and reinforced adjustment units with reinforcing frames.

FEATURES OF ADJUSTMENT UNITS FOR MEA MULTINORM LIGHT WELLS

• works very well in lower-lying basements
• stepless height adjustment up to ground level (adjustment unit with depth 40 and 60 cm - range: 8–33 cm, with depth 70 cm and width 100 and 125 range:10-33 cm , with depth 70 cm and width 150 cm - range: 10-52 cm)
• does not require cutting (just adjust and screw the light well at the correct height to the wall).
• adjustment units are available in many sizes (width range: 80–150 cm, depth: 40 cm, 60 cm and 70 cm)
• reinforced frame should be used with more then one adjustment unit
• standard assembly kit (to the walls without insulation) included

ADVANTAGES OF ADJUSTMENT UNITS FOR MEA MULTINORM LIGHT WELLS

• high stability
• light and easy installation
• resistant to mechanical damage, weather conditions and corrosive chemicals
• exceptional durability, no signs of wear
• permanent solution that requires no maintenance
