Humidity sensitive wall air vent AquWall SI HY

Current thermal insulation systems improve building tightness, but without proper ventilation it causes deterioration of indoor conditions, what leads to bad feeling or allergy. Additionally, excess air moisture leads to the creation of dangerous fungi and mould. Efficient ventilation is essential factor to have a comfortable and healthy flat. Modern ventilation systems enable continuous air exchange according to the specified criteria.

Humidity sensitive air vent AquWall SI HY enables proper indoor ventilation by means of the channel in the outer wall. Stream of air flow depends from the indoor relative humidity level (RH) – with RH up to 45% - 6 m3/h, whereas with RH exceeding 60% - 45 m3/h (with pressure difference 20 Pa). Due to the usage of acoustic channel the sound attenuation reaches up to 47 dB.

HUMIDITY SENSITIVE WALL AIR VENT SC EM HY FEATURES:

• automatically steered vent by air humidity
• manual switch (close/open)
• air flow with RH (relative humidity level) up to 45% - 6 m3/h, with RH exceeding 60% - 45 m3/h
• effective attenuation of outdoor noises
• easy assembly
• aesthetic look
• vent is compatible with the outlet grid Alize Hygro

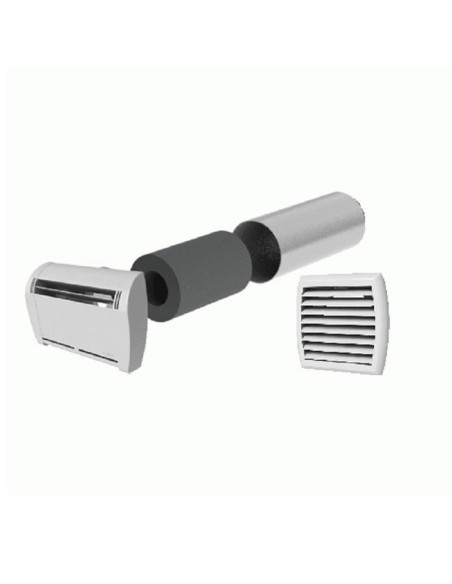

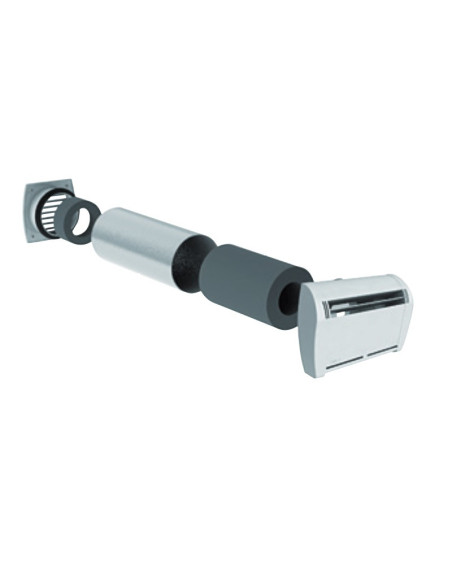

The kit includes:

• main part – acoustic humidity sensitive regulator mounted indoor, dimensions 220x150x52 mm, adjustment unit 125 mm
• acoustic channel MAC 125 with length 200 mm
• acoustic external grid GAMP 125 fixed outside the building, dimensions 150x150x20, adjustment unit 125 mm

The kit does not include the channel whose length depends from the length of compartment in which the vent is installed.
