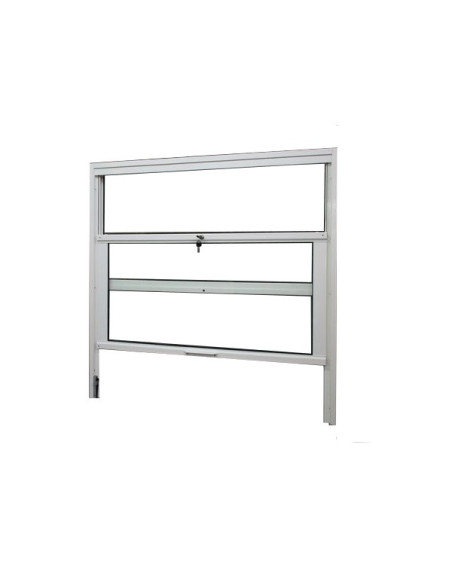

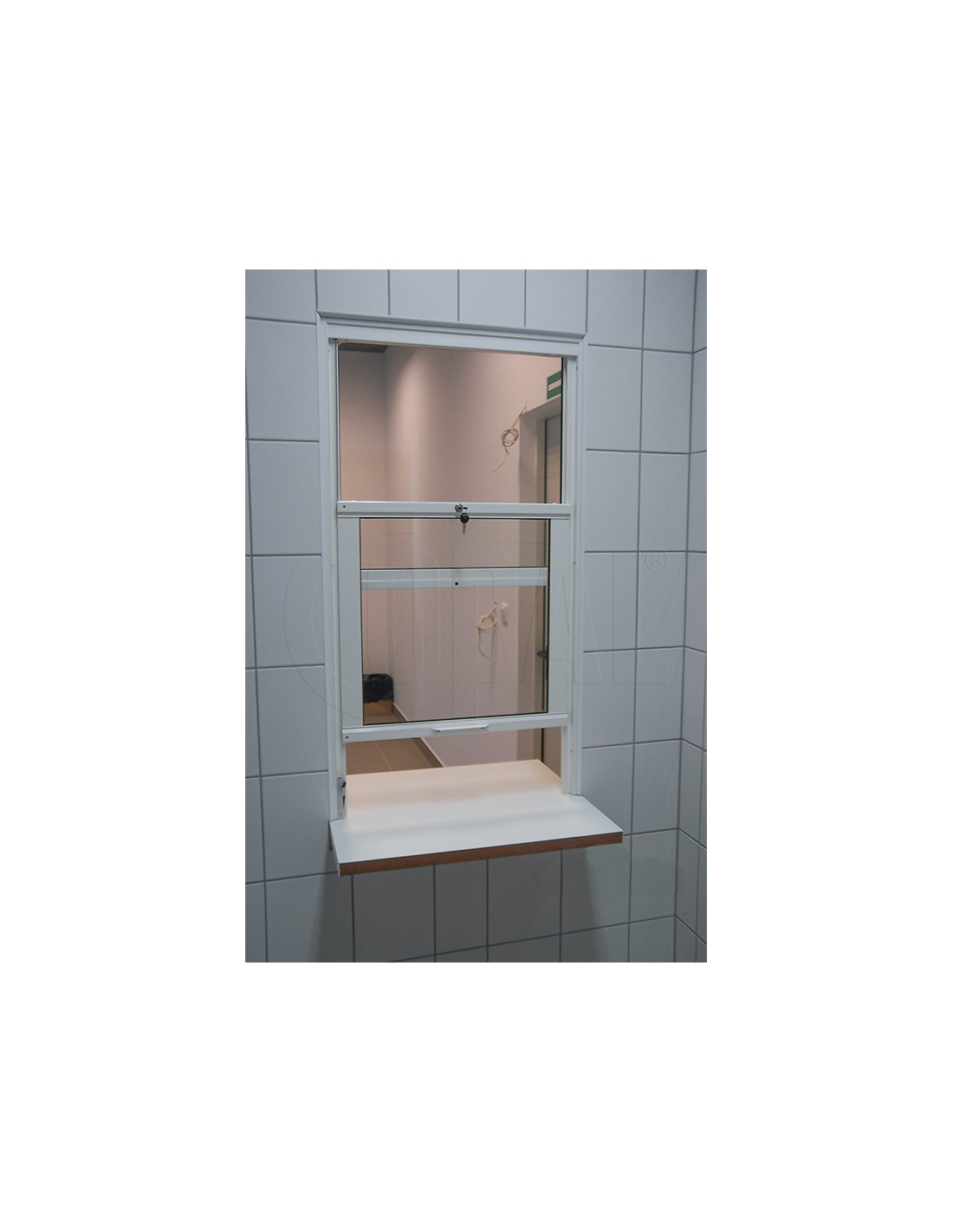

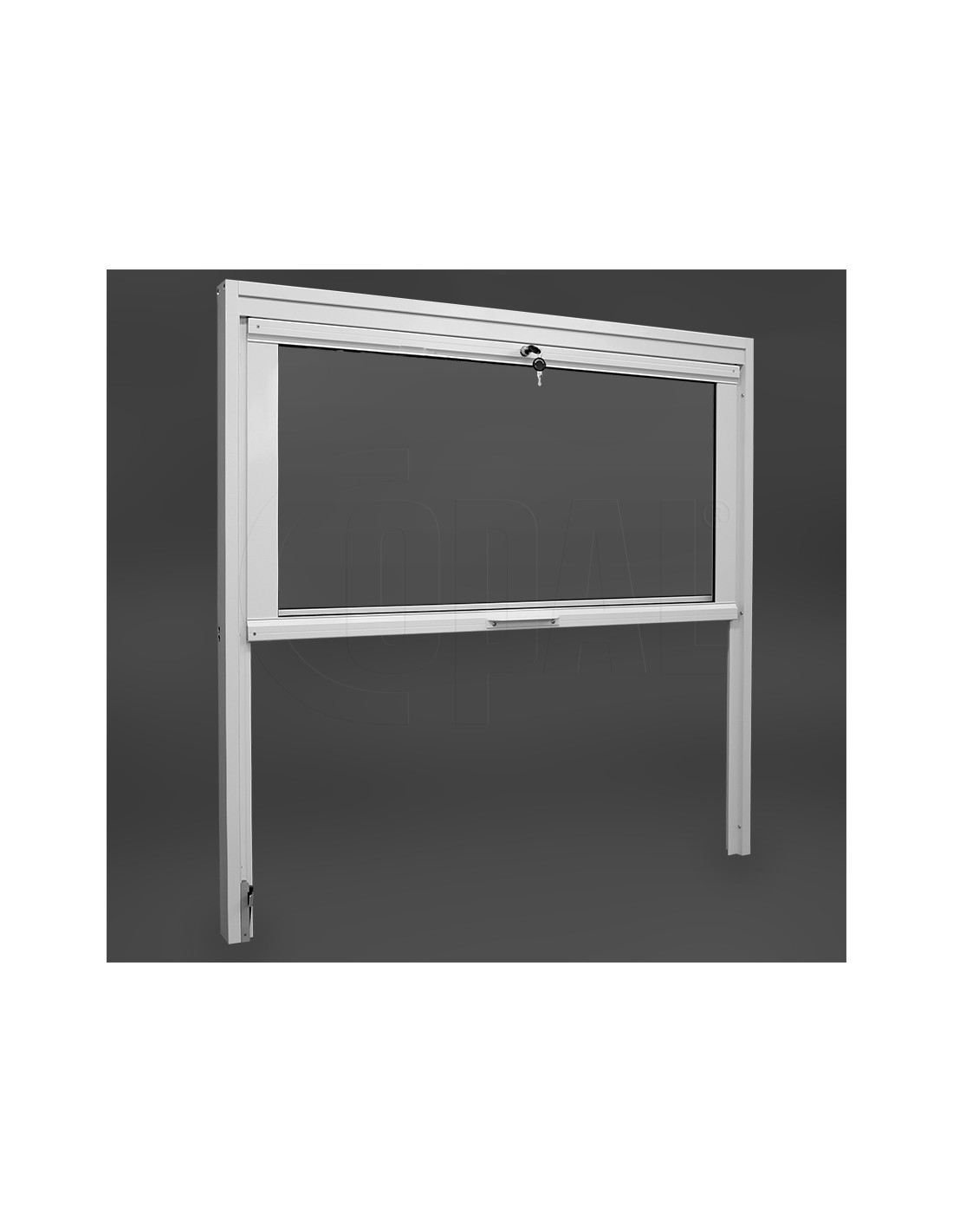

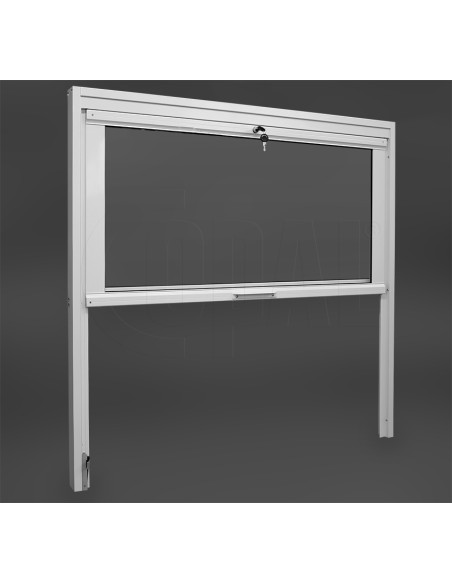

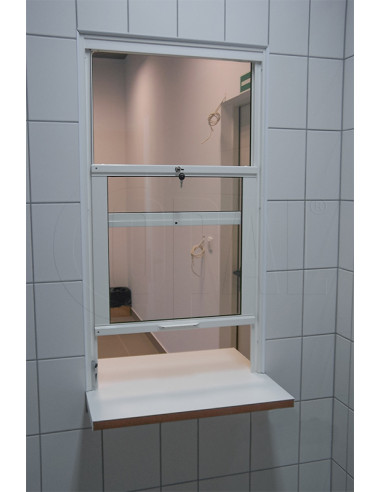

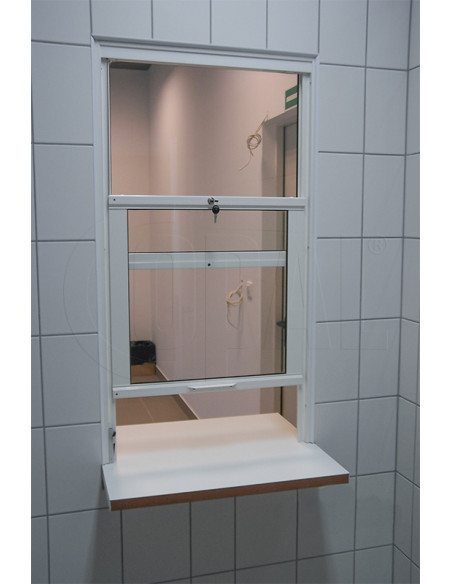

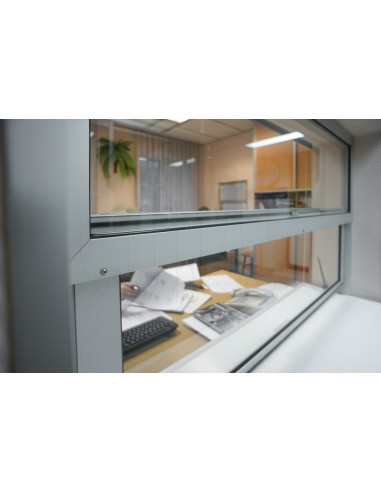

copy of Vertically sliding infeed/cashier window with actuator

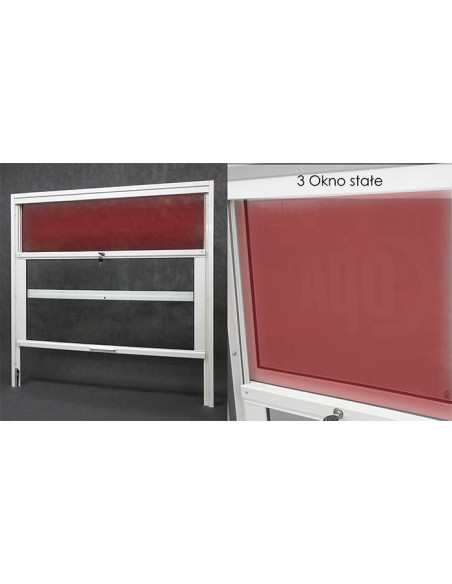

Feeder and cashier windows made on an aluminium profile with VSG 33.1 (6.4 mm) glass. The window can be slid both vertically and horizontally. Window with actuator. Smaller constructions can be made without an actuator.

The window is painted white (RAL 9016) as standard. It is possible to order the window anodised or lacquered in any colour from the Ral or Decoral palette. The window uses translucent VSG 33.1 - 6.4mm safety glass (it is possible to order milky safety glass, 16mm laminated glass and P4 anti-burglary glass). The minimum size of the window is 500x500mm and the maximum is 1500x1500mm, which can be increased by fixed parts.

The windows have a bayonet lock mounted on the inside, which is invisible to a person outside. In addition, the window can be left in any opening position without locking.

CHARACTERISTICS OF THE SLIDING WINDOW WITHOUT ACTUATOR

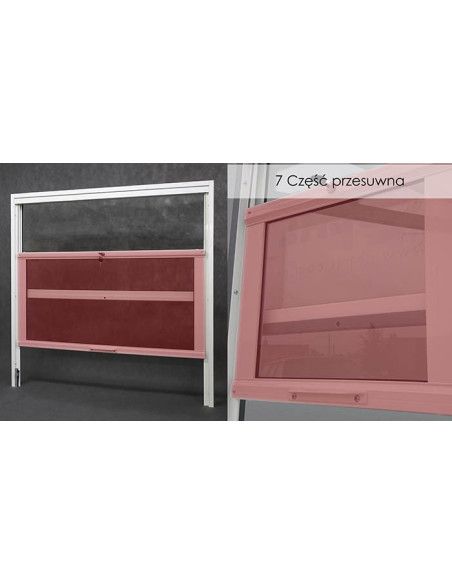

    vertically sliding window

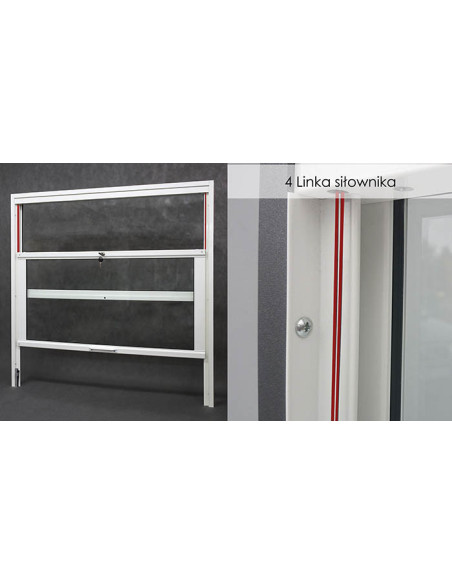

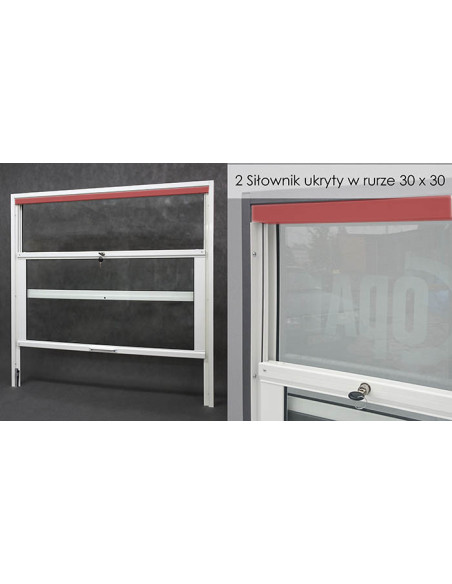

    window with pneumatic actuator - assisted lifting so that operating the window does not require any force
    for lifting window weights above 7kg a pneumatic actuator is recommended, for lifting window weights above 10kg an actuator is required

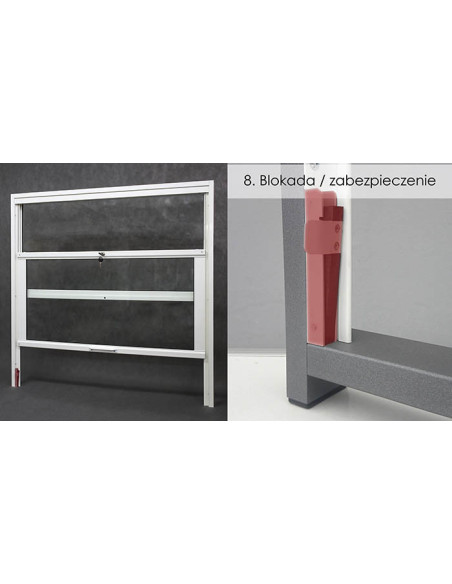

    window lock E602

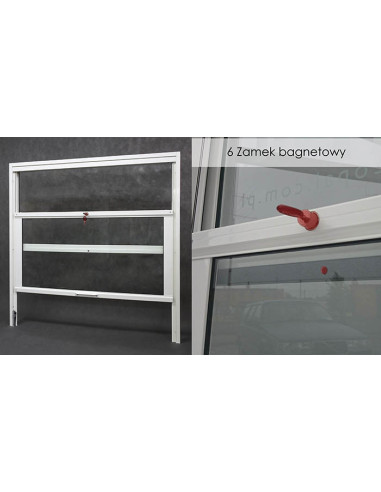

    bayonet lock E408
    VSG 33.1 safety glass (6.4 mm), transparent - optionally available with milk glass, 16 mm laminated glass, anti-burglary glass P4

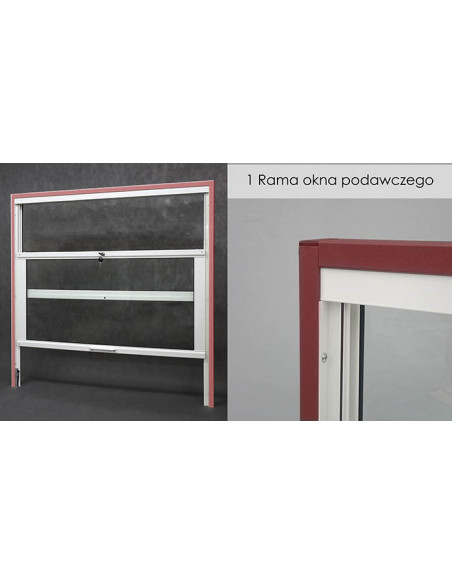

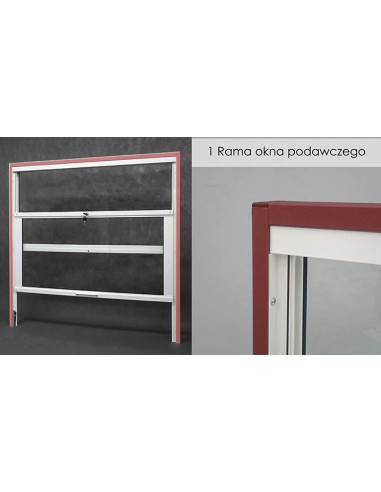

    aluminium profile

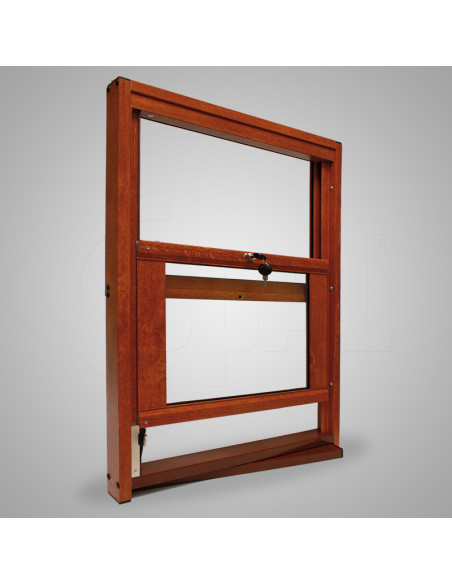

    window in white RAL 9016 (possibility to order window in any colour from Ral palette)
    trouble-free assembly
    vertical window without bottom frame profile

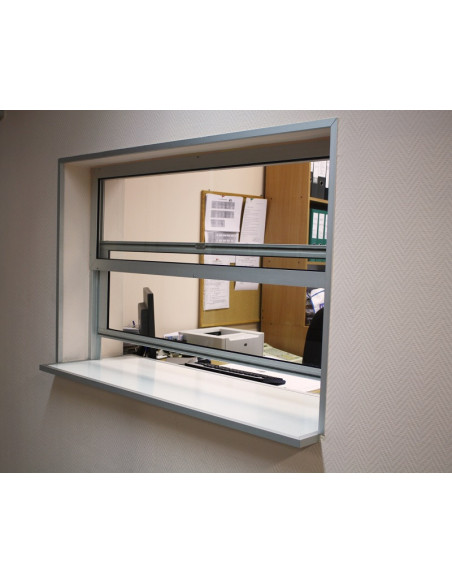

    window without sill

ADVANTAGES OF PASS WINDOW

    versatility of use
    easy assembly
    possibility to order the window in any RAL colour
    safe glass
    easy to operate
