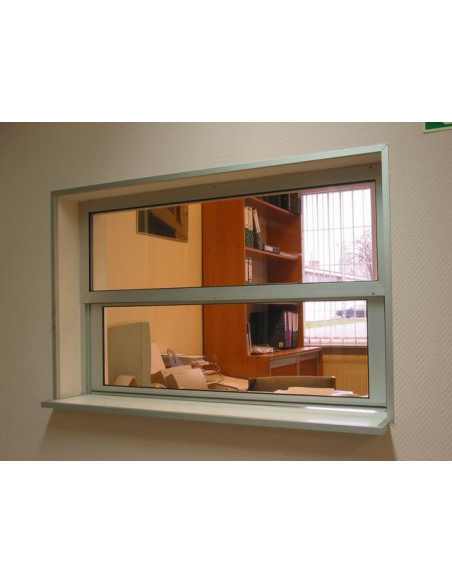

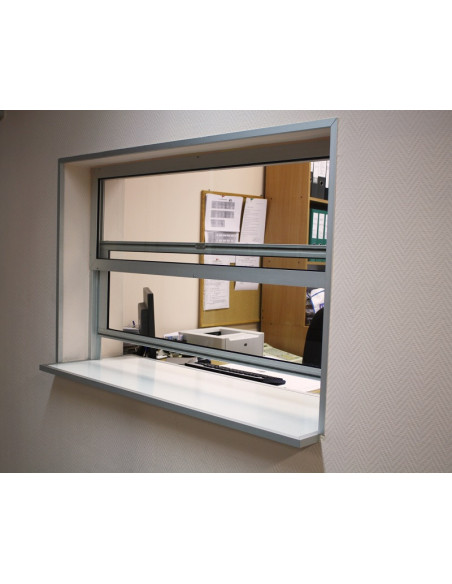

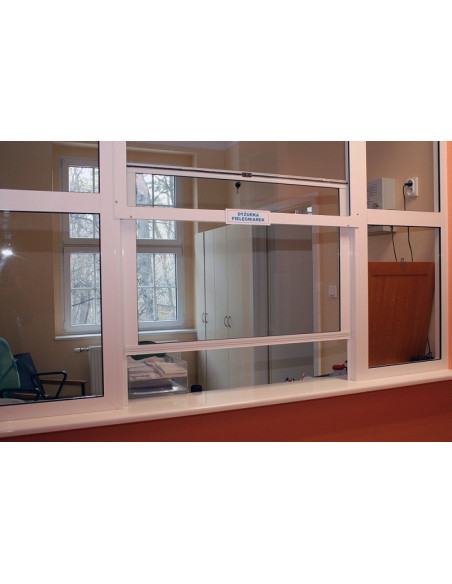

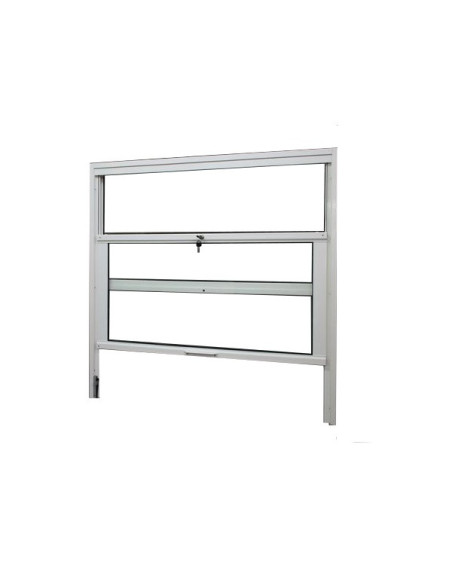

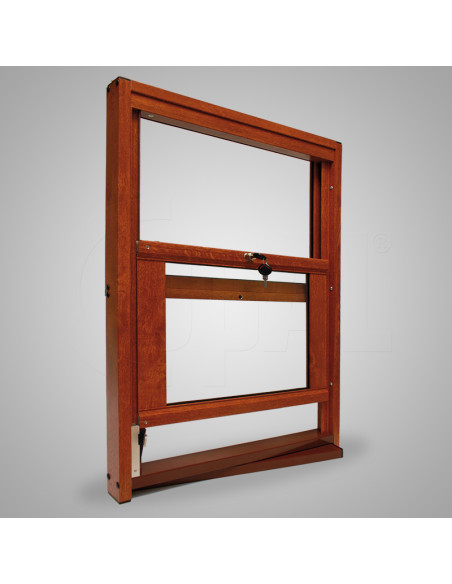

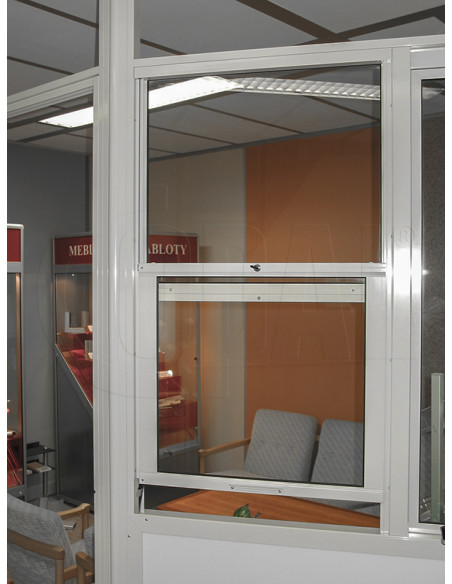

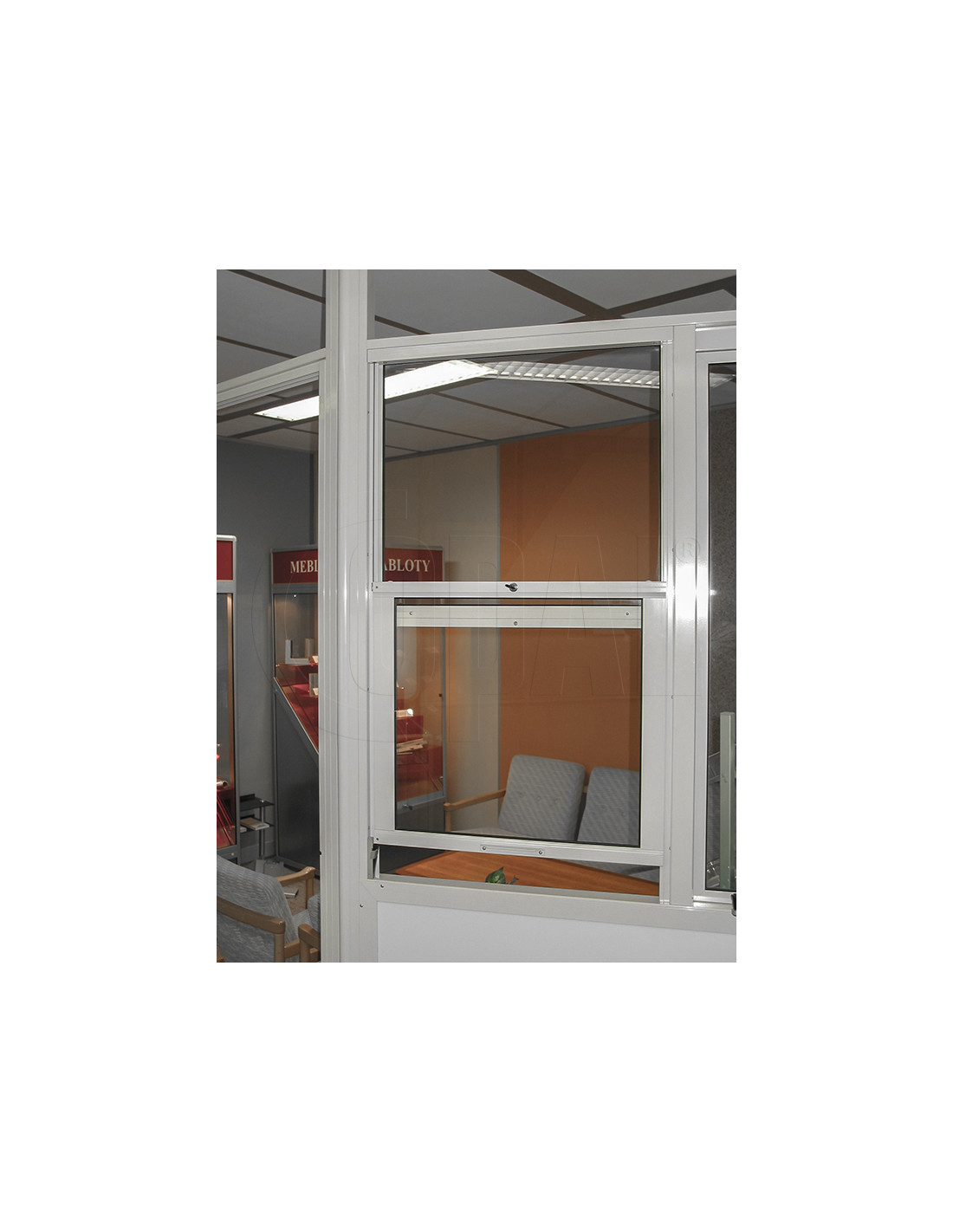

copy of Vertically sliding infeed/cashier window

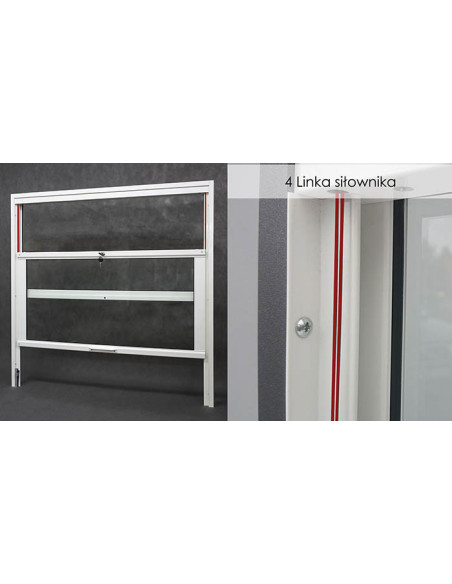

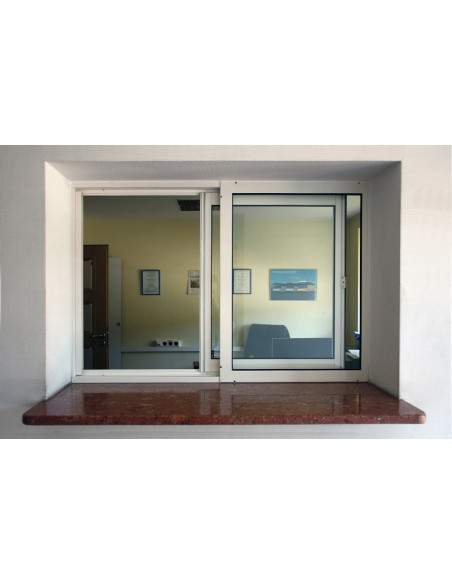

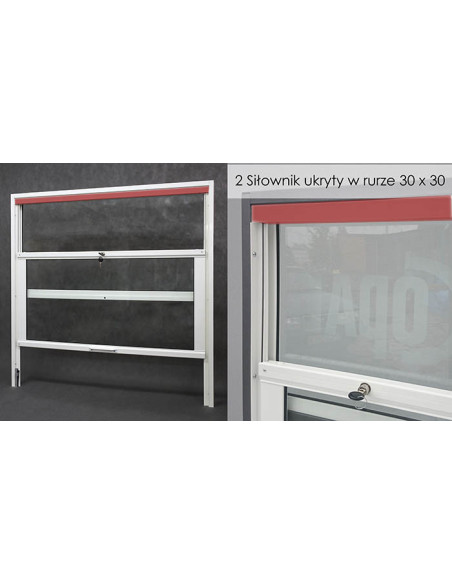

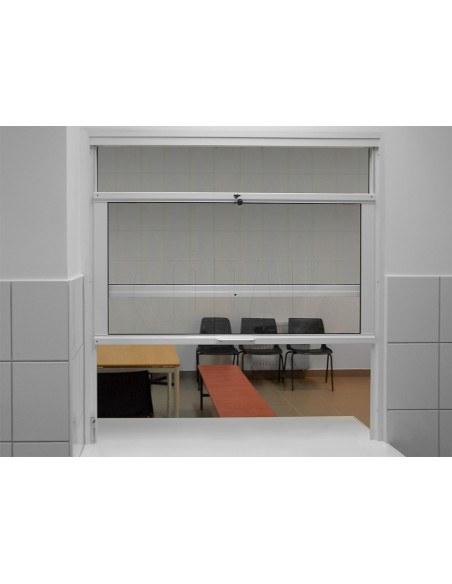

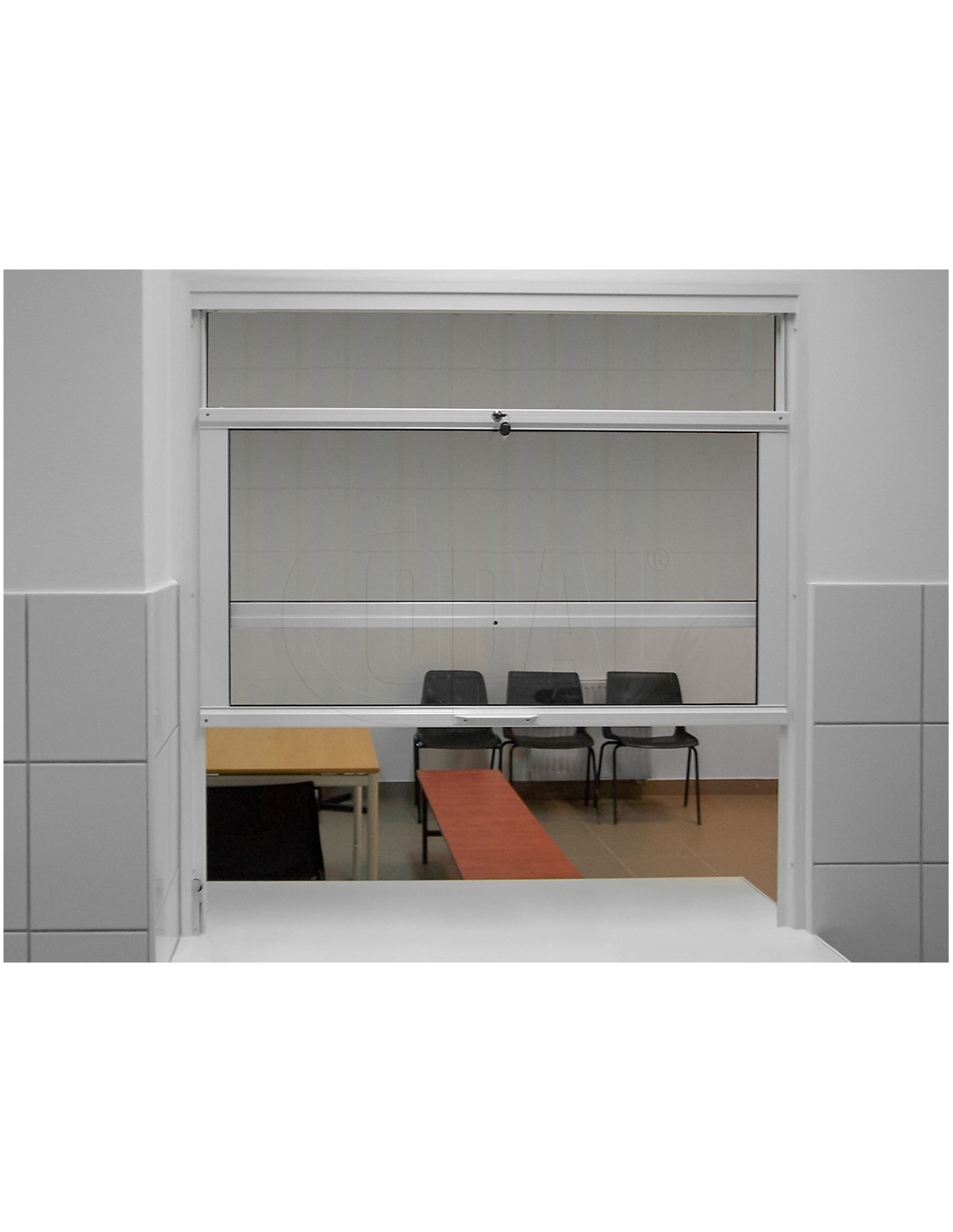

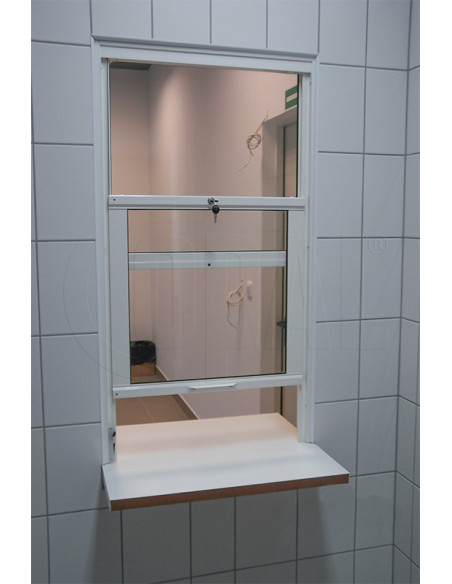

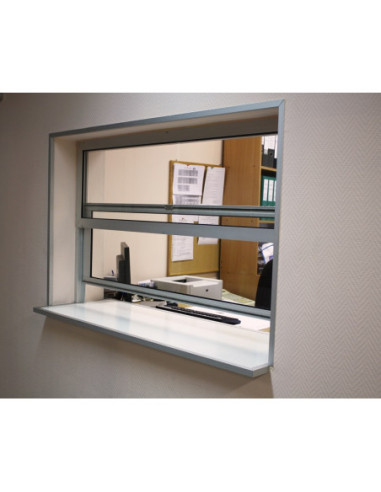

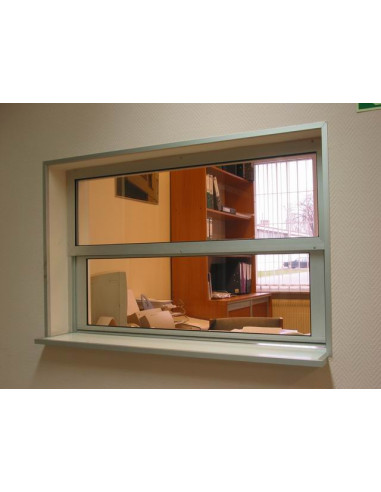

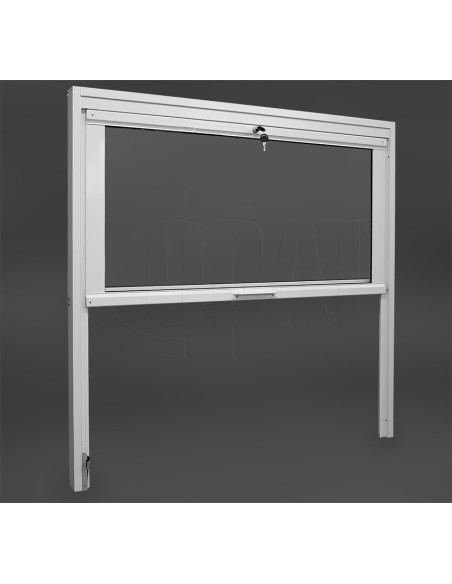

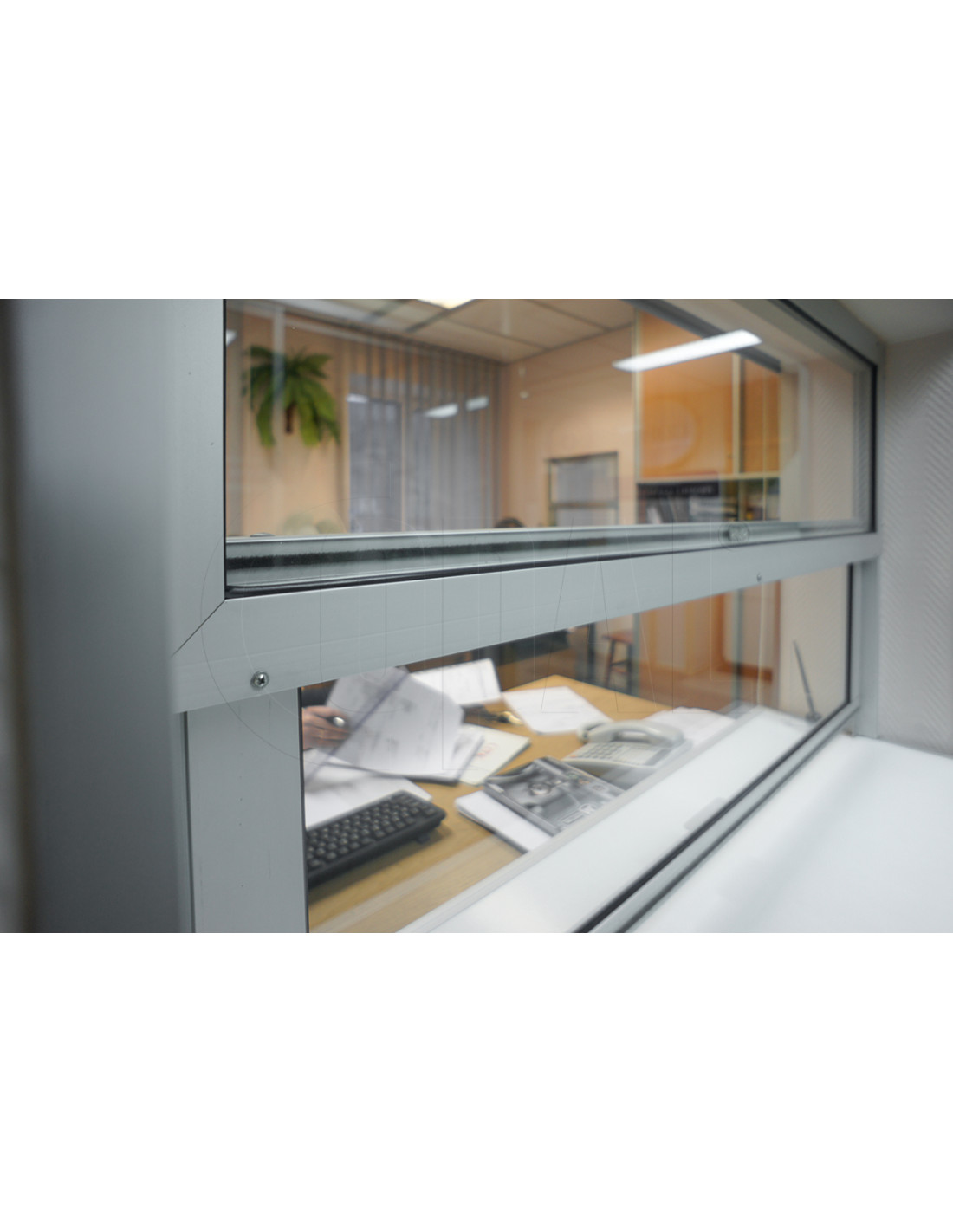

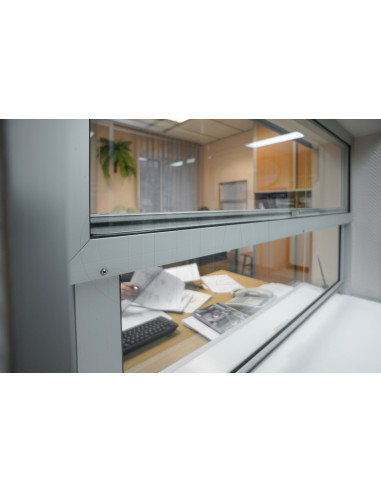

Cashier windows made on an aluminium profile with VSG 33.1 (6.4 mm) glass. The window can be slid both vertically and horizontally. Lifting window weight up to 7kg - without actuator. Larger windows can be made with an actuator.

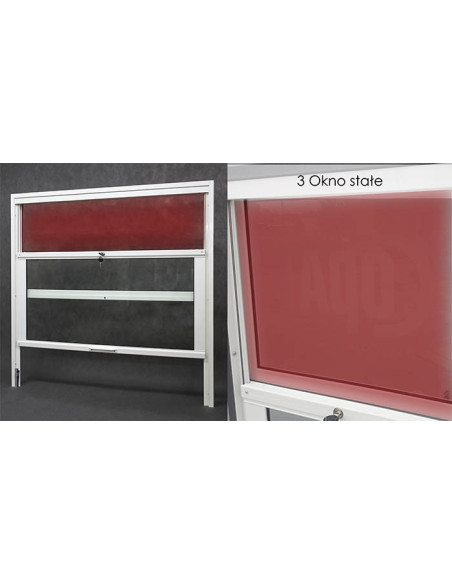

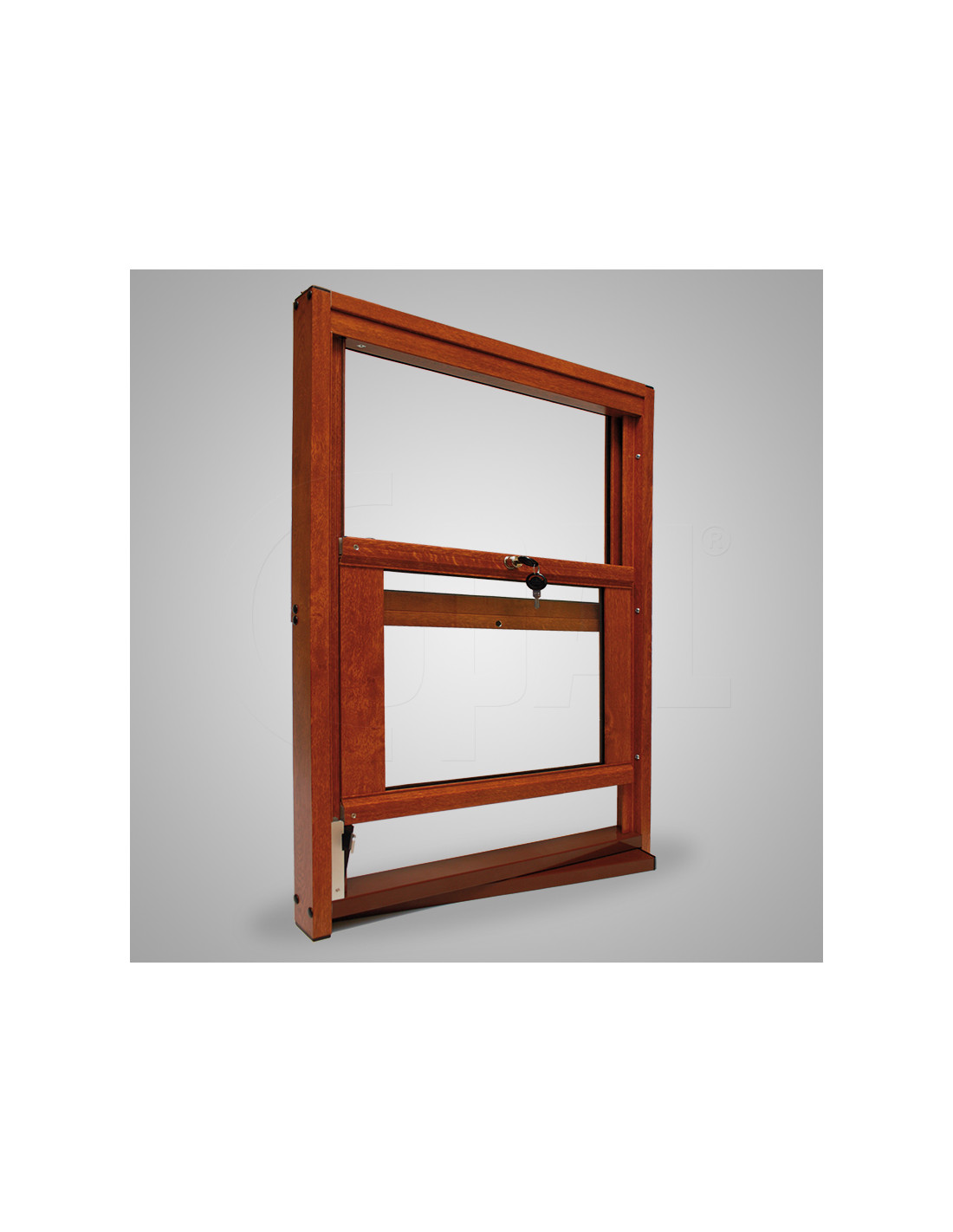

The window is painted white (RAL 9016) as standard. It is possible to order the window anodised or lacquered in any colour from the Ral or Decoral palette. The window uses translucent safety glass VSG 33.1 - 6.4mm (it is possible to order milky safety glass, 16mm laminated glass and P4 anti-burglary glass). The minimum size of the window is 500x500mm and the maximum is 1500x1500mm, which can be increased by fixed parts.

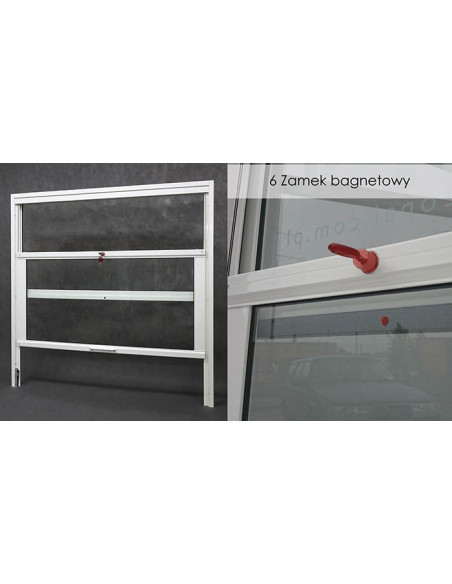

The windows have a bayonet lock mounted on the inside, which is invisible to a person outside. In addition, the window can be left in any opening position without locking.

CHARACTERISTICS OF THE SLIDING WINDOW WITHOUT ACTUATOR

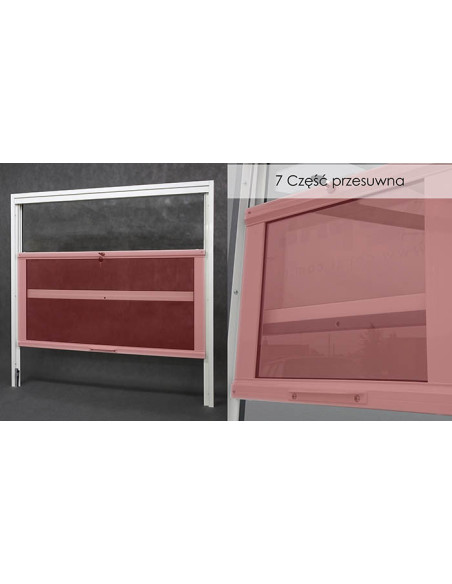

    vertically sliding window
    without actuator - sliding window weight up to 7kg.

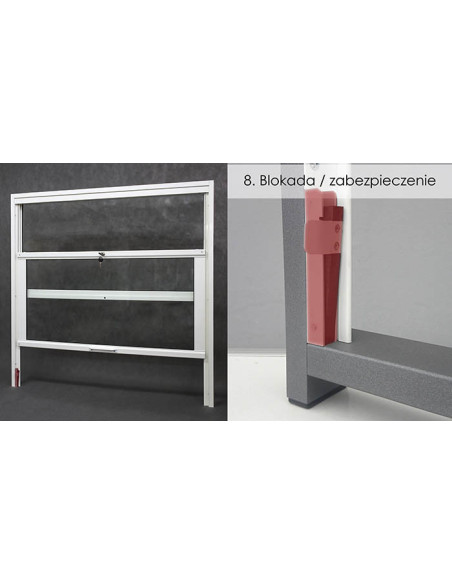

    window lock E602

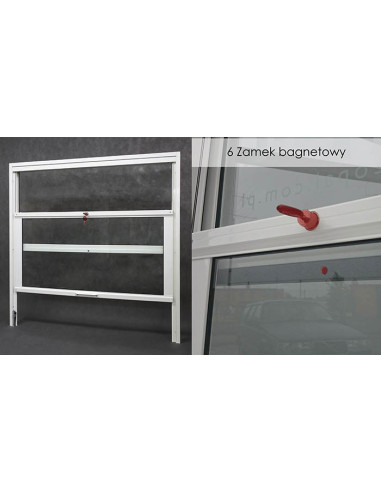

    bayonet lock E408
    VSG 33.1 safety glass (6.4 mm), transparent - optionally available with milk glass, 16 mm, anti-burglary glass P4

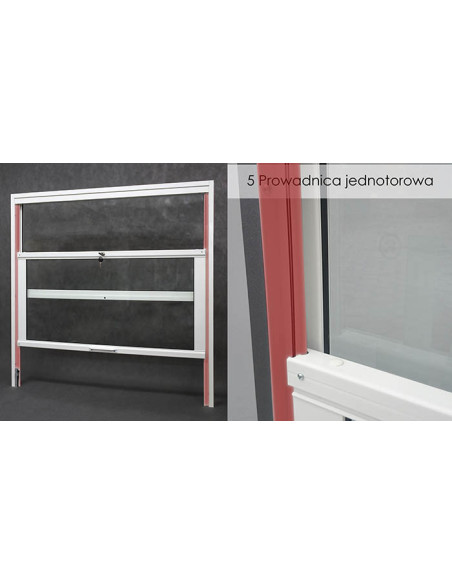

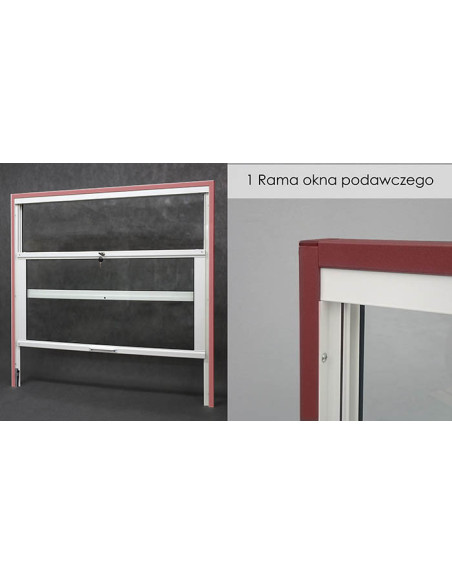

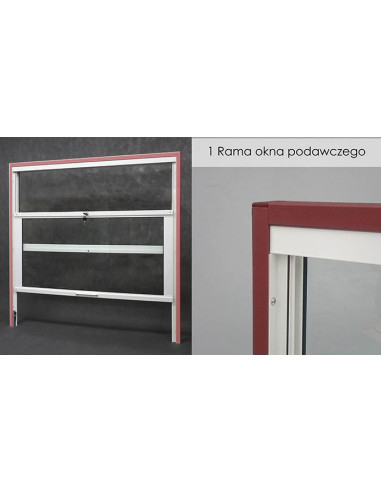

    aluminium profile
    window in white RAL 9016 (possibility to order window in any colour from Ral palette)
    trouble-free assembly

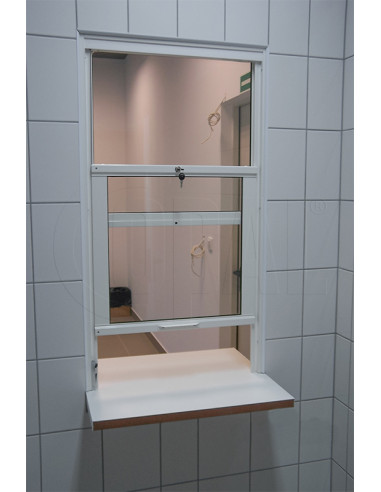

    vertical window without bottom frame profile
    window without sill

ADVANTAGES OF PASS WINDOW

    versatility of use
    easy assembly
    possibility to order the window in any RAL colour
    safe glass
    ease of operation
