Pressure controlled trickle vent TRDN II

  • Special offer
  • New
5
Rating (5/5)

Window vents enable efficient air circulation in the room and sustain optimal moisture. With window vents the air in the flat is fresh and our family lives in healthier environment. Our vents are an aesthetic and functional device designed for easy assembly.

Producer: Ventair

Print an offer
Add to wish list
If you haven't decided yet to buy this product, add it to your personal wish list which you can manage at any time

Window vents enable efficient air circulation in the room and sustain optimal moisture. With window vents the air in the flat is fresh and our family lives in healthier environment. Our vents are an aesthetic and functional device designed for easy assembly.

They are dedicated to PVC and timber windows. Available in three popular colours: white, golden oak and brown. Mounted in the upper part of the window they prevent drafts. They can be used both in new windows and windows already fitted in the house. The body of the vent is made from high-quality aluminium, whereas drive unit elements are made from polyformaldehyde- with special attention to details and usage comfort.

Trickle vents TRDN II are elements of a ventilation system enabling proper air circulation:

  • AUTOMATIC  AIR CIRCULATION REGULATOR  (reacting to the pressure difference)- air input is stable independent from weather conditions (wind, cold). AIR CIRCULATION REGULATOR – it is placed in the inlet probe. Aerodynamic aluminium sheet works as steering element “floating” in the stream of inflowing air.
  • INLET PROBE – protects against rainwater absorption, equipped with an insect net.
  • INTERNAL REGULATOR – directs air stream diagonally upward, enables manual regulation of air circulation by means of tilting flap

FEATURES OF TRICKLE VENT TRDN II

  • body made from aluminium
  • unit drive elements are made of poliformaldehyde
  • available in two colours - white RAL 9016 and brown RAL 8017
  • eliminates excess air moisture and problems with window condensation
  • friendly to health
  • discrete look

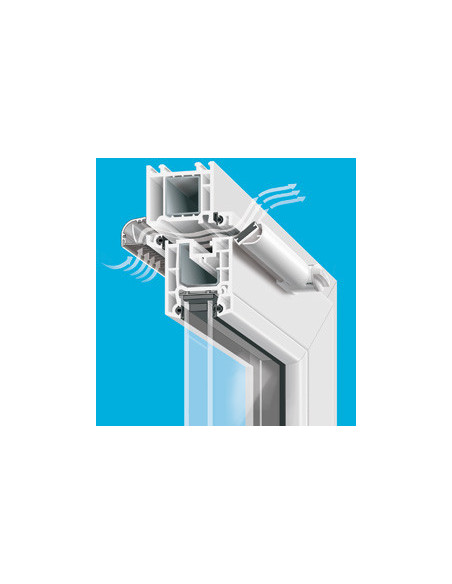

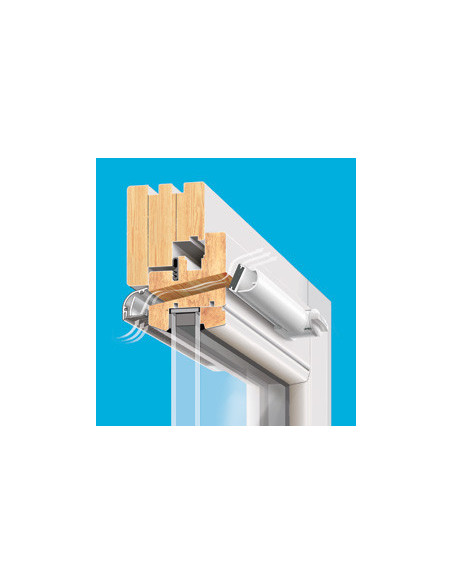

  • fixed in window rebates

ADVANTAGES OF VENT TRDN II

  • decreases air contamination
  • removes out mist
  • improves air circulation
  • eliminates problem with window condensation
  • fast and easy-to-mount

You need to remember about proper maintenance of the vents.

  • the vent should be cleaned with a dry cloth, you cannot use powders, cleaning liquids and corrosive chemicals
  • air circulation cannot be distracted, therefore  the vent hole cannot be covered or clogged because it causes improper work of the vent

VENT DIMENSIONS

  • inlet probe (external part) length 346 mm, height 24 mm
  • regulator (internal part) length 395 mm, height 23 mm

SLOT SIZE FOR THE ASSAMBLY



THE KIT INCLUDES



  • inlet probe
  • internal regulator
  • assembly screws
  • covers
  • knob to air flow regulation

Shipping rates may differ when additional duties or other non-routine customs charges apply in the country of delivery.

Technical data

Kind of vent Window
Colour White RAL 9016, brown RAL 8017
Measure unit Pcs.
Type of vent Pressure controlled
Purpose PVC, timber, aluminium windows
Acoustic attenuation 34- 40 dB(A)
Air flow 25 m3/h
Manufacturer Ventair

Warranty

Warranty time 24 months
