Light wells provide an excellent solution for lighting basements. Light wells can visually enlarge the available space and create conditions for new opportunities during basement adaptation.

Producer: Mea

add to compare

Print an offer
Add to wish list

If you haven't decided yet to buy this product, add it to your personal wish list which you can manage at any time

Light wells provide an excellent solution for lighting basements. Light wells can visually enlarge the available space and create conditions for new opportunities during basement adaptation.

With integrated telescopic adjustment, it is possible to adjust the height of the body to your needs. The light well is easy and quick to install. This ensures the light well fits perfectly into the terrain, while avoiding unnecessary drilling during installation. Another advantage is the exceptionally aesthetic visual effect. Four grating variants are available: mesh gratings 30/10 and 30/30, grid grating and PKW grating 30/10. The light well with PKW grating enables passenger vehicle traffic.

FEATURES OF MEAMAX LIGHT WELLS

Body made of high quality fibreglass-reinforced polyester that enables passenger vehicle traffic.
Round hole in the bottom of the drain.
Light well depth: 40 cm
Smooth body surface provides optimal lighting for basement space, e.g. garages, storerooms, pantries.

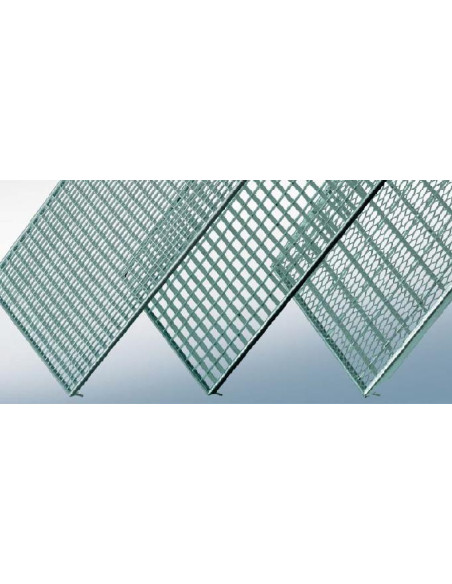

Grating made of galvanised steel, with factory-fitted protection: mesh, grid 30/30, grid 30/10, PKW grating (for passenger vehicle traffic).
Variable light well height with built-in telescopic adjustment range of 25 cm.
Installation kit included as standard.
Drainage connection available (from 'Accessories' tab).
Light well is resistant to deformation (100% frost-resistant).

ADVANTAGES OF MEAMAX LIGHT WELLS

High stability.

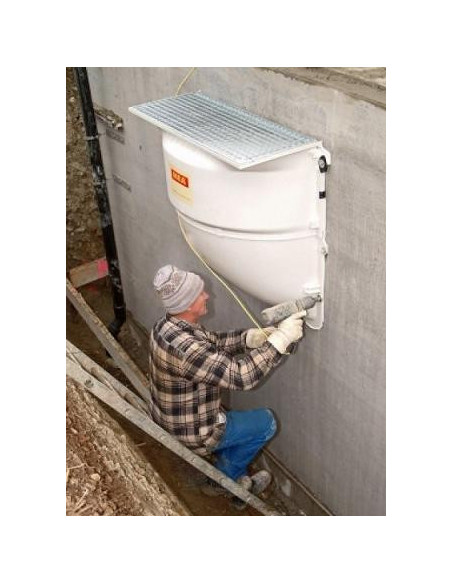

Light and easy installation.
High flexibility.
Resistant to deformation and mechanical damage, weather conditions and corrosive chemicals.
Exceptional durability.
No signs of wear.
Permanent solution that requires no maintenance.
Resistant to chemical compounds and weather conditions.

Light wells are available in varied sizes, width from 80 to 125 cm and height from 60 to 150.

The kit includes:

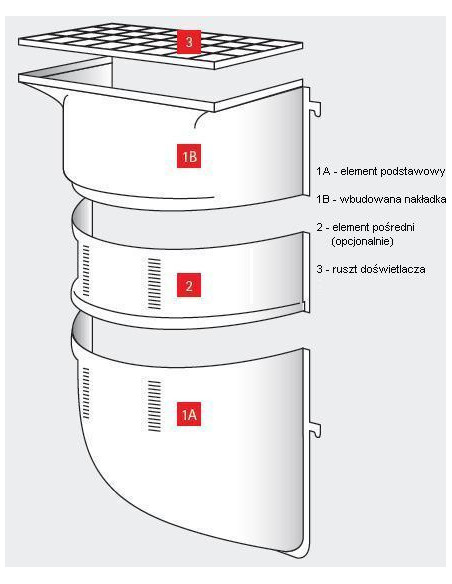

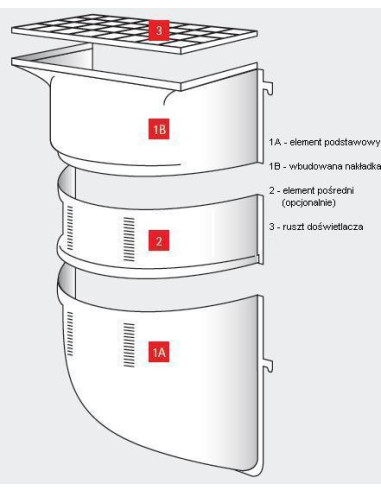

2-part shaft with integrated height regulation
galvanized PKW grating
standard installation kit

Integrated telescopic regulation enables regulation of light well height in 25 cm range. Thanks to the MEAMAX intermediate element, the total height can be increased by a further 35 cm.

MEAMAX light well has a regulated height, you need to remember that:

when choosing a grating the width and depth of a chosen light well needs to be taken into account
you can fix up to 3 adjustment units
in case of fixing an adjustment unit you need to drill 4 additional holes
waterproof installation possible – includes light wells MEA AQUA (available in our shop)
possible standard installation adjusted to car traffic (with grating PKW)

Types of drain ports dia. 80 mm (extra charge):

MEA MEGA STOP drain port (shaft, screw collar, screen)
MEA MEGA STOP check valve
MEA MEGA STOP (complete kit: shaft, collar, screen, and check valve)
