Linear drainage system Wolfa 100/6 V

  • Special offer
0
Rating (0/5)

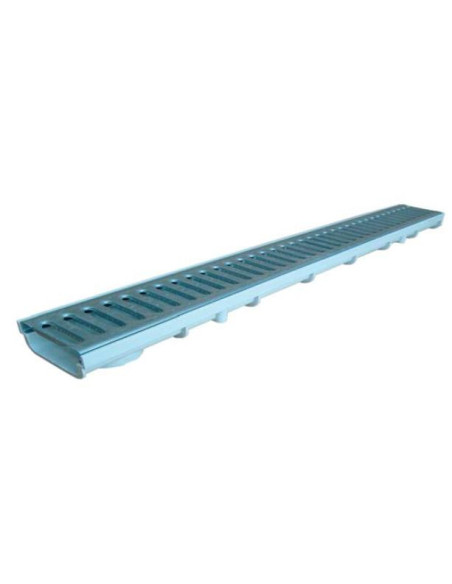

Linear drainage system type 100/6 made of glass fibre reinforced polyester is very stable and durable. Such a material combined with a polyester thermosetting resin guarantees the highest quality and durability. These are flat channels (maximum capacity) which guarantee a perfect drainage of the public areas – available also in the loading class C 250.

Producer: Wolfa

Print an offer
Add to wish list
If you haven't decided yet to buy this product, add it to your personal wish list which you can manage at any time

Linear drainage system type 100/6 made of glass fibre reinforced polyester is very stable and durable. Such a material combined with a polyester thermosetting resin guarantees the highest quality and durability. These are flat channels (maximum capacity) which guarantee a perfect drainage of the public areas – available also in the loading class C 250.

FEATURES

  • shallow drainage
  • maximum capacity
  • durable construction
  • universal
  • unbreakable
  • loading class A 15 – up to 1,5 tones and C 250 – up to 25 tones
  • perfect for terraces, underground garages, multi-storey car parks, warehouses or shopping arcades
  • wide variety of accessories
  • resistant to influence of high temperatures, also hot asphalt
  • gratings fixed without screws embedded inside the channel

ADVANTAGES

  • little weight
  • extremely durable
  • gratings fixed without screws
  • resistant to the influence of weather conditions
  • resistant to the influence of chemicals, petrol, oil or slurry
  • optimal water flow
  • smooth surface enabling the effect of self-cleaning
  • easy to assemble

Additional equipment (extra charged)

  • end cap to close the channel
  • angle, T-shaped or cross  connector
  • outlet connection kit (2 end caps, outlet connector DN 100 with a siphon and strainer)
  • an adjustment unit enabling installation on the height 3-30 cm

length - 100 cm

total width - 13,5 cm

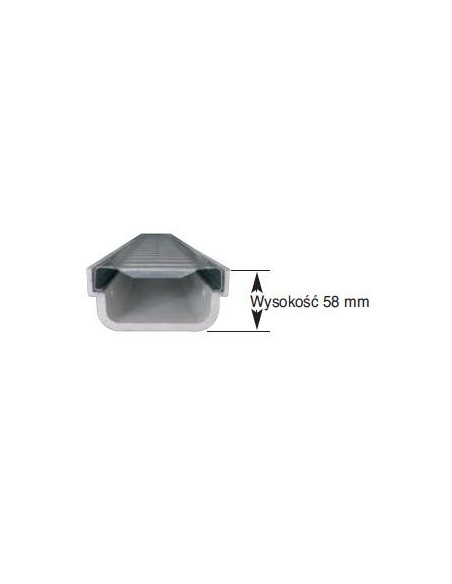

height - 58 mm

clear width - 9,5 cm

Definition of the loading classes according to EN 1433

Class A  15* - communication passages for pedestrians and cyclists (up to 1,5 tones)

Class B 125* - car parks for passenger vehicles and pavements (up to 12,5 tones)

Class C 250* - areas near street curb drainages, pavements or side roads (up to 25 tones)

Class D 400* - roadways, pedestrian  zones, car parks and hardened surfaces equivalent to them (up to 40 tones)

* Preliminary loading in kN according to DIN EN 1433

Shipping rates may differ when additional duties or other non-routine customs charges apply in the country of delivery.

Technical data

Height 58 mm
Loading class Class A15 (up to 1,5 tones), C250 (up to 25 tones)
Material Glass fibre reinforced polyester (GRB)
Measure unit Set
Model Linear drainage 100/6 V
Producer Wolfa

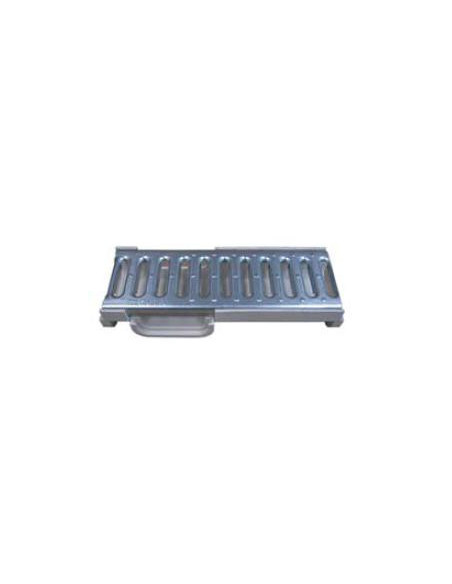

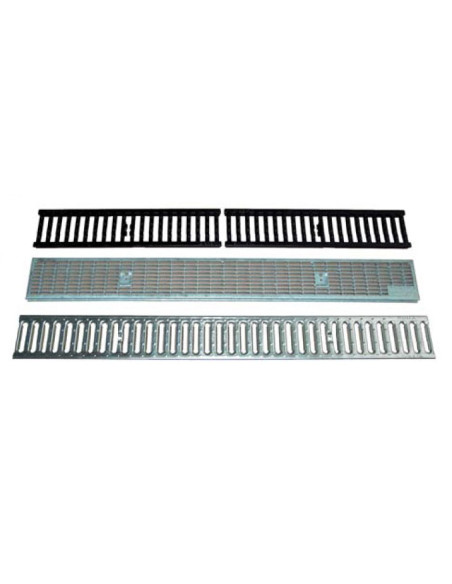

Type of grating Cross bar grating, grid grating 30/10, ductile iron grating
Width 13,5 mm (clear width 9,5 cm)

Accessories

Adjustment unit Yes (extra charged)
Lateral cap Yes (extra charged)
Sewer connector Yes (extra charged)
T-shaped or X connections adapter Yes (extra charged)

Warranty

Warranty time 24 months
15.54 GBP/set 18.39 GBP/set
  • Product is available
  • Dispatch from: 5.66 GBP
  • Realization 4 - 21 working days
