Linear drainage system Wolfa 100/10 V-Line

  • Special offer
0
Rating (0/5)

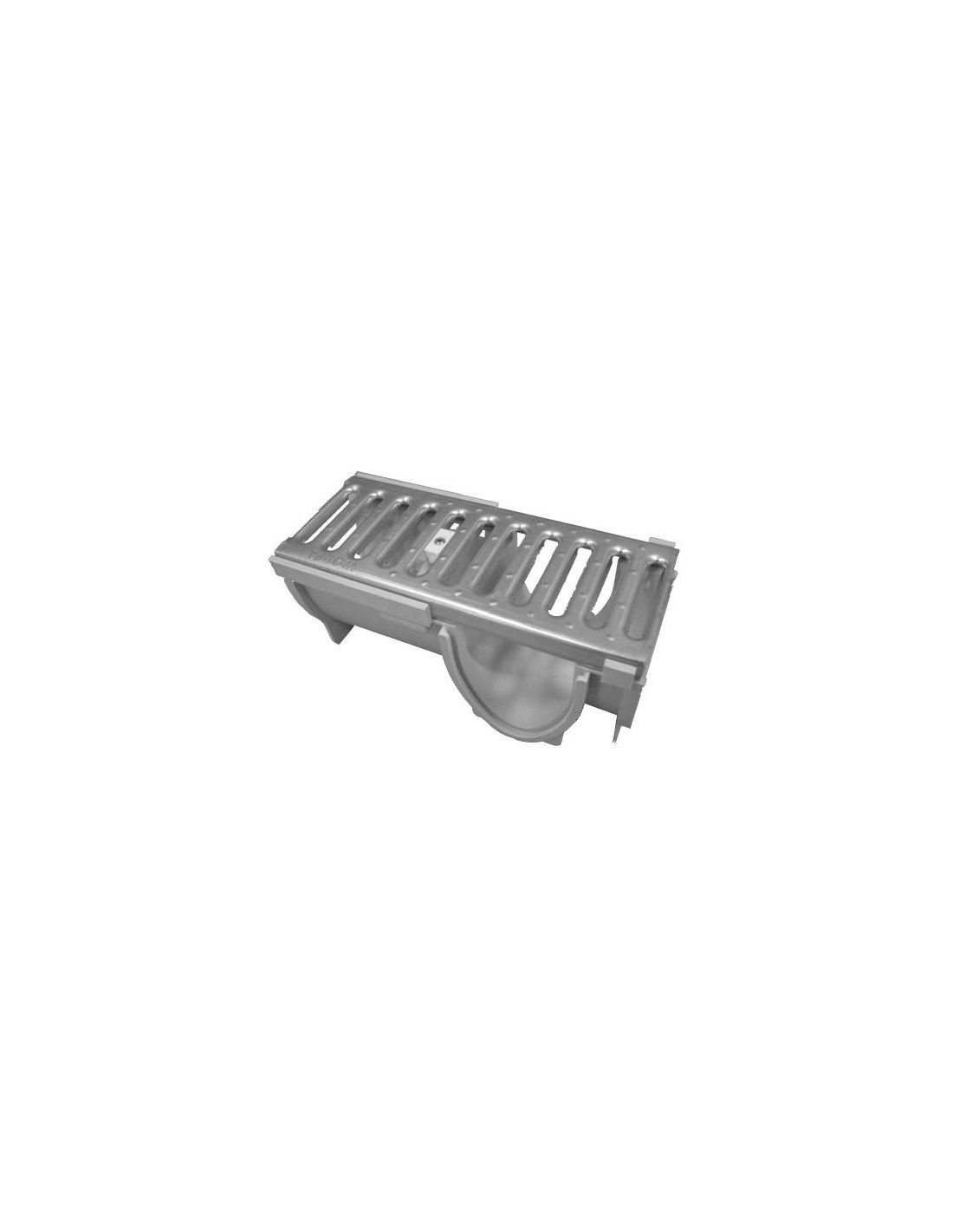

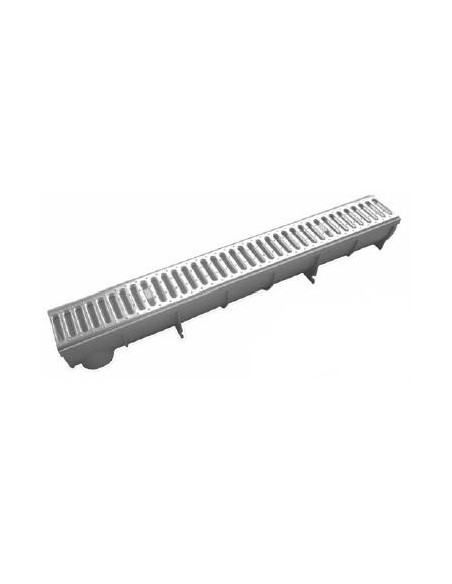

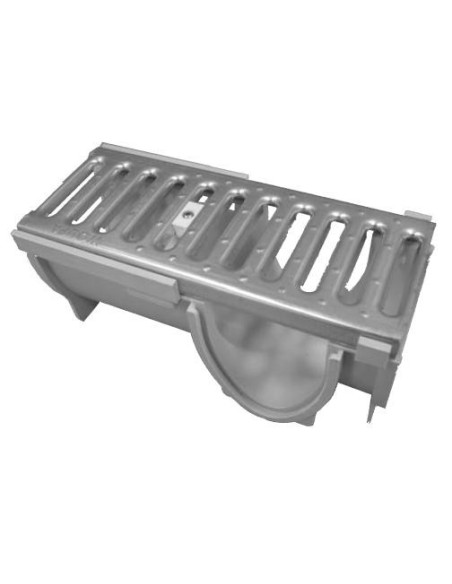

Linear drainage systems type 100/10 V Wolfa are made of polyester-glass composite which makes them stable and durable. The system includes channels and covers in the form of grid grating made of galvanized steel (cross clotted)– suitable for the loading class A –  up to 1,5 tones, grid grating 30/10 with a loading class C250 and ductile iron gratings with a loading class C250 and D400. Gratings are screwed to the channels, therefore they are perfect solution both for single-family housing, car parks and green areas.

Producer: Wolfa

Print an offer
Add to wish list
If you haven't decided yet to buy this product, add it to your personal wish list which you can manage at any time

Linear drainage systems type 100/10 V Wolfa are made of polyester-glass composite which makes them stable and durable. The system includes channels and covers in the form of grid grating made of galvanized steel (cross clotted)– suitable for the loading class A –  up to 1,5 tones, grid grating 30/10 with a loading class C250 and ductile iron gratings with a loading class C250 and D400. Gratings are screwed to the channels, therefore they are perfect solution both for single-family housing, car parks and green areas.

FEATURES

  • durable construction
  • universal
  • unbreakable

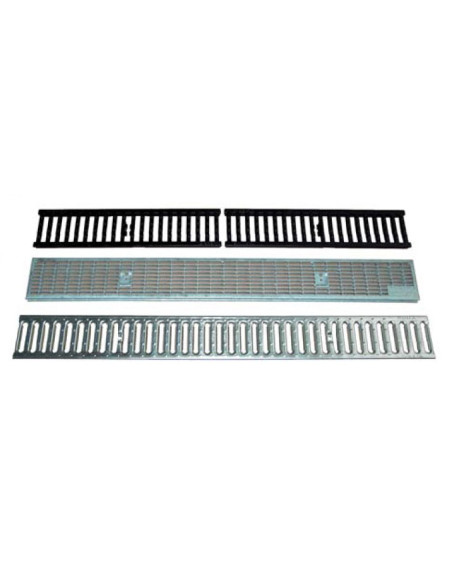

  • 4 types of gratings in the loading class A15, C250, D400 (ductile iron gratings with the length of 50 cm)
  • wide variety of accessories
  • resistant to changing weather conditions
  • drainage channels are entirely made of glass fibre reinforced polyester
  • grating fixed by means of screws

ADVANTAGES

  • little weight
  • extremely durable
  • resistant to the influence of chemicals
  • resistant to the influence of temperature and rust
  • resistant to petrol, oil and slurry
  • optimal water flow
  • smooth surface enabling the effect of self-cleaning
  • easy to assemble

Additional equipment (extra charged)

  • end cap to close the channel
  • corner, T-shaped or cross connections
  • outlet connection kit (2 end caps, outlet connector DN 100 with a siphon)
  • lateral connection with the sewer  DN 100
  • drain port with one or two-side connector with a siphon and galvanized silt box

Length - 100 cm

Height - 14 cm

Total width - 13,5 cm

Clear width - 10 cm

Definition of the loading classes according to EN 1433

Class A  15* - communication passages for pedestrians and cyclists (up to 1,5 tones)

Class B 125* - car parks for passenger vehicles and pavements (up to 12,5 tones)

Class C 250* - areas near street curb drainages, pavements or side roads (up to 25 tones)

Class D 400* - roadways, pedestrian  zones, car parks and hardened surfaces equivalent to them (up to 40 tones)

* Preliminary loading in kN according to DIN EN 1433

Shipping rates may differ when additional duties or other non-routine customs charges apply in the country of delivery.

Technical data

Loading class A15, C250, D400
Material Glass fibre reinforced polyester
Measure unit Set
Model Linear drainage system 100/10 V
Producer Wolfa
Type of grating Galvanized steel slotted grating, grid grating 30/10, ductile iron grating

Accessories

Drain port Yes (extra charged)
Lateral cap Yes (extra charged)
Lateral cap with an outlet connector Yes (extra charged)
Sewer connector Yes (extra charged)
T-shaped or X connections adapter Yes (extra charged)

Warranty

Warranty time 24 months
21.64 GBP/set 25.63 GBP/set
  • Product is available
  • Dispatch from: 9.06 GBP
  • Realization 4 - 21 working days
