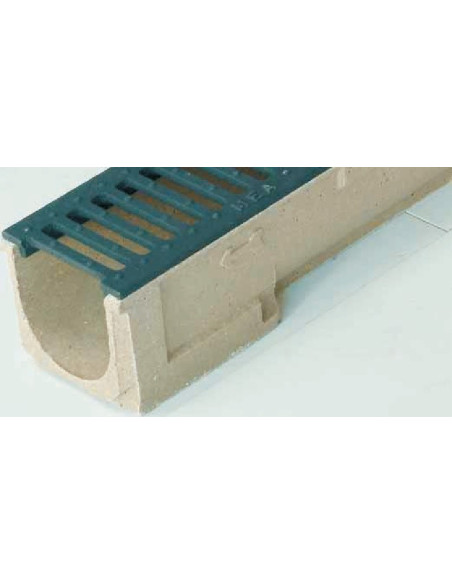

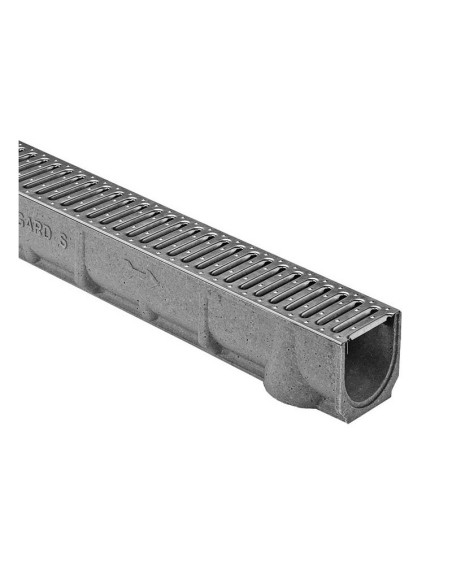

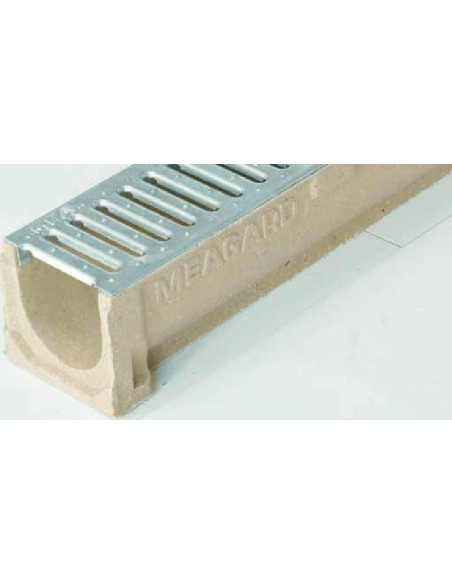

Linear drainage system MEAGARD II S & II G

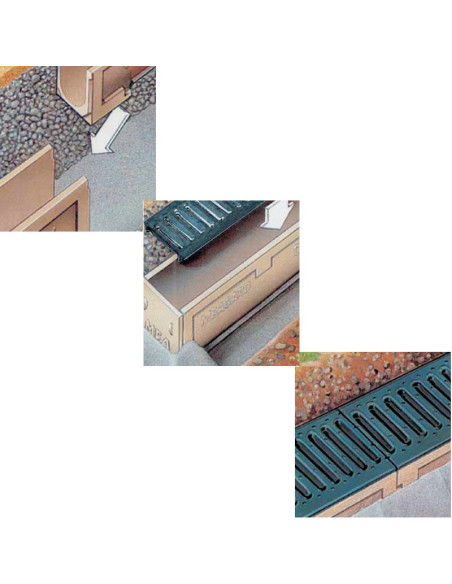

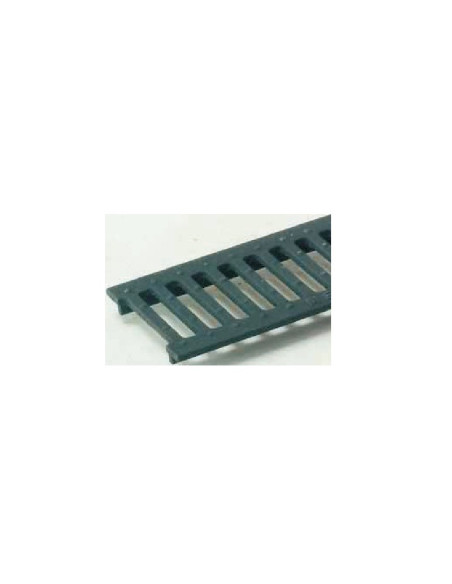

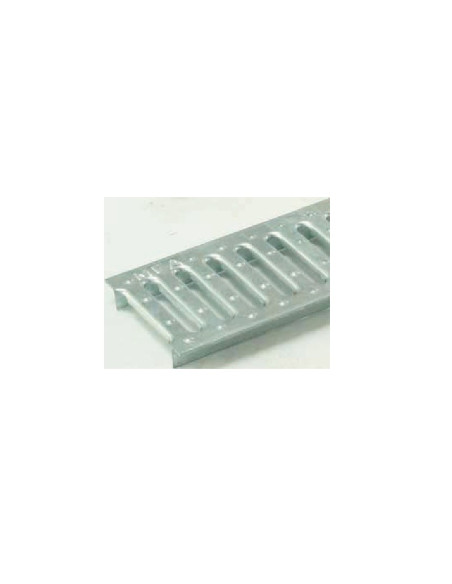

Linear drainage systems MEAGARD II are made of polymer concrete with slotted gratings made of galvanized steel or ductile iron. U-shaped channels guarantee optimal flow and a self-cleaning effect even with a very little slope, and the material they are made of, polymer concrete, enables their functionality and durability. Due to additional accessories – yard grooves, dry wells, sewer connectors and end caps – it is possible to assemble the complete drainage system yourself. Drainage systems MEAGARD II are dedicated to single-family housing, gardens, recreation areas, pavements as well as pedestrian zones, garages, car parks and sports areas (e.g. pitches or tennis courts).

FEATURES

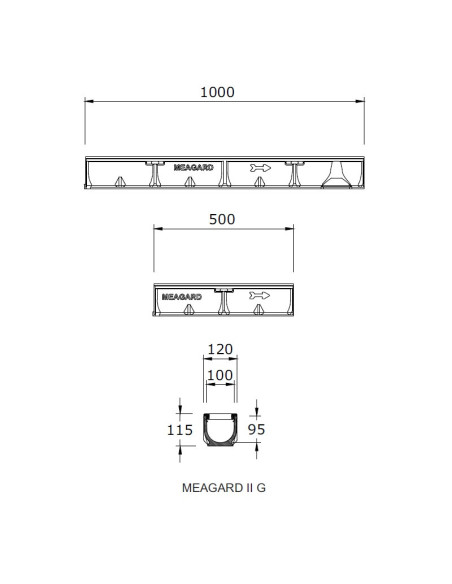

• dimensions: length 1000 mm, height II S - 110 mm, II G - 115 mm, clear width 100 mm, total width 120 mm
• gutters include formed outlet DN110
• U-shaped cross section and a smooth surface enable optimal water and dust outflow
• resistant to chemicals (PH 3-9)
• light and comfortable in transport, easy to assemble
• easy to treat by different tools like drills, chisels or cutting discs
• lighter than traditional concrete gutters up to 75%
• material does not need maintenance, resistant to frost, high temperature, corrosion and attrition
• passable for cars when properly mounted according to producer’s assembly instructions
• linear drainage systems MEAGARD II are dedicated to single-family housing, car parks, garages, gardens, recreation areas, pavements, pedestrian zones or sports facilities.

ADVANTAGES

• very light and durable construction
• optimal capacity and self-cleaning effect
• easy to assemble and maintain
• passable for cars
• resistant to chemicals, rust, changing weather conditions and attrition.
